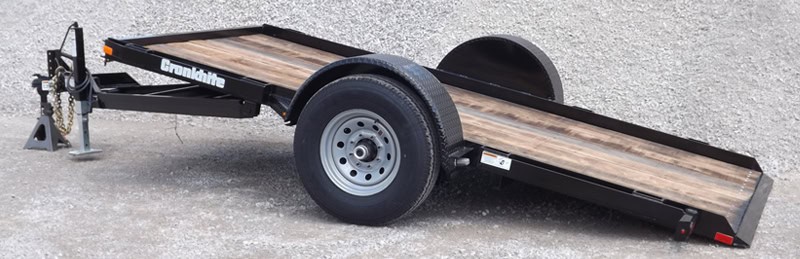

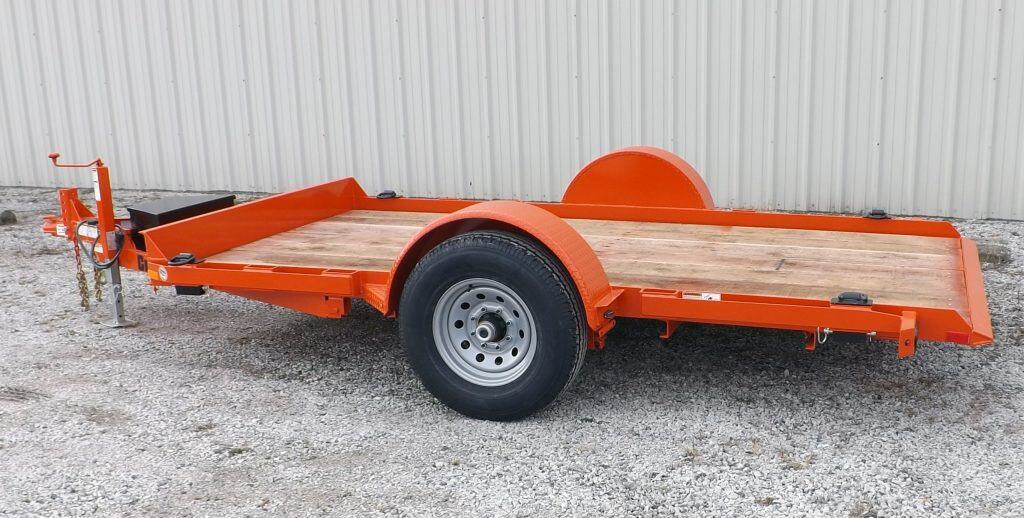

Single Axle Tilt (500 Series)
The 500 Series is our single axle tilt deck trailer line. This line consist of 3 different models in 2 different axle capacities (3.5K & 6K)and 3 different deck lengths 10 Ft – 12 Ft – 14 Ft. Due to a smaller footprint they are easier to maneuver and handle, but offer great versatility for hauling a wide variety of construction equipment due to the rugged, heavy duty materials and quality welding. Angle frame construction and Dexter drop axles keep the deck height to the lowest in the industry. 15”. This low deck makes it easier, safer, and faster to load a wide variety of construction equipment like scissor lifts, forklifts, small rollers, and other small industrial equipment.
3,000 - 7,200
GVWR (Lbs.)
97″ - 99″
Width
2,100 - 6,000
Payload Capacity (Lbs.)
Single Axle Tilt (500 Series)
Let's Get Started
"*" indicates required fields
Single Axle Tilt (500 Series) Specs & Add-Ons
Key Specifications
Feature 1 Solid 2” White Oak Deck Floor – Durable & Long Life
Feature 2 Heavy Duty Diamond Plate 14 Gauge Steel Fenders – Strength and Long Life
Feature 3 Dexter Heavy Duty Drop Axles – EZ Lube Grease Hubs – Forward Self-Adjusting Brakes – Equalizers
Feature 4 Heavy Duty Frame & Tongue Construction
Feature 5 Sound Structural Design for Long Life and Dependable Performance
Feature 6 Trailer Low Center of Gravity for Increased Stability, Safety, and Ease of Towing
Feature 7 Rugged “No Bend – No Sag” Loading Ramps for Long Life
Feature 8 TrueTrack Tongue Design Improves Trailer Stability, Responsiveness, and Tracking
Performance
GVWR – Lbs. 3,000 - 7,200
Total Axle Capacity – Lbs. 3,500 - 6,000
Payload Capacity Lbs. 2,100 - 6,000
Dimensions
Standard Deck Width 74″ - 76″
Standard Deck Length 10′ - 12′
Deck Height 15″ - 17″
Overall Width 97″ - 99″
Deck Length Options 12′ - 14′
Mainframe Angle Steel 4″x3″x1/4″ - 5″ x 3″ x 1/4″
Crossmembers 3″ C @ 4.1 lb
Tongue 4″ C @5.4 lb
