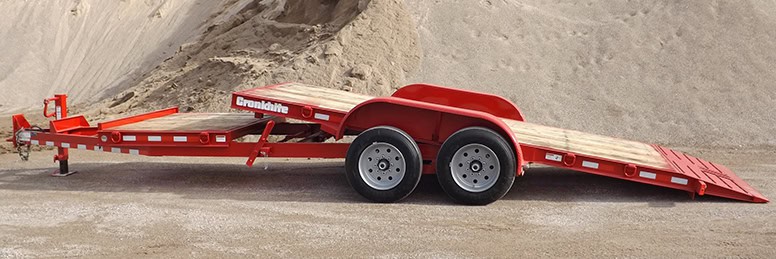

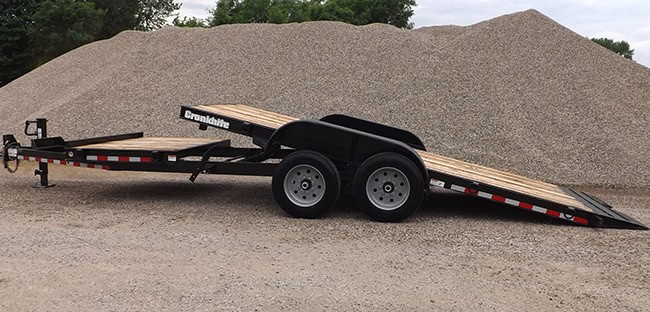

Split Tilt (3600 Series)

The 3600 Series Tilt Deck Trailer is our top of the line and one of our best sellers. Designed for easy loading, this trailer features a knife edge approach which creates a smooth and level entry point to roll your equipment onto the deck. The 3600 Series has a flush deck. This design allows equipment, attachments, or odd shaped cargo to extend past the trailer frame and still be secured. The 3600 Series is engineered with a pivot tilt point strategically located under the deck. This pivot point allows gravity to gently lower the deck into the loading down position. A hydraulic cushion cylinder provides variable adjustability to the gravity tilt operation. A heavy duty locking latch system secures the deck to the frame for safe and secure transportation.

14,200 - 18,900

GVWR (Lbs.)

102″

Width

10,000 - 14,500

Payload Capacity (Lbs.)

Split Tilt (3600 Series)

Let's Get Started

"*" indicates required fields

Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Newletter Signup
This field is for validation purposes and should be left unchanged.

Key Specifications

Feature 1 Solid 2” White Oak Deck Floor – Durable & Long Life
Feature 2 Heavy Duty Diamond Plate 14 Gauge Steel Fenders – Strength and Long Life
Feature 3 Dexter Heavy Duty Drop Axles – EZ Lube Grease Hubs – Forward Self-Adjusting Brakes – Equalizers
Feature 4 Heavy Duty Frame & Tongue Construction
Feature 5 Sound Structural Design for Long Life and Dependable Performance
Feature 6 Trailer Low Center of Gravity for Increased Stability, Safety, and Ease of Towing
Feature 7 Rugged “No Bend – No Sag” Loading Ramps for Long Life
Feature 8 TrueTrack Tongue Design Improves Trailer Stability, Responsiveness, and Tracking

Performance

GVWR – Lbs. 14,200 - 18,900
Total Axle Capacity – Lbs. 14,000 - 16,000
Payload Capacity Lbs. 10,000 - 14,500

Dimensions

Standard Deck Width 81″- 83″
Standard Deck Length 16′
Approach Plate 2′
Stationary Deck 4′
Deck Height 25″
Overall Width 102″
Deck Width Options No
Deck Length Options No
Crossmembers 6″ C @ 10.5 lb
Tongue 6″ C @10.5 lb
