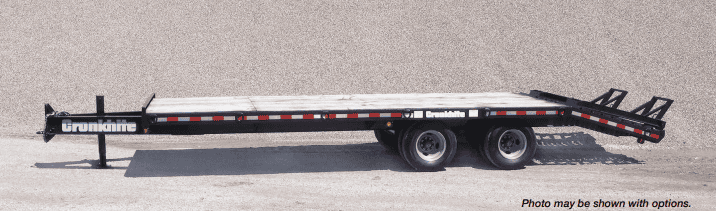

Dual Wheel / Tandem Axle (6000 Series)

These trailers are designed for hauling larger equipment like tractors, backhoes, bulldozers, pavers, excavators, and crawlers. They feature wider deck widths up to 102” and additional deck lengths. The loading ramps are ladder style, spring assist, 5’x18”, and are adjustable “side to side”. The ramps fold and lay flat on the deck. The deck floor is very durable with 2” Solid Oak hardwood. The frame of the trailer is crafted out of 10” or 12” Wide Flange I-Beam construction. In addition each trailer has a minimum of 10 tie downs, 10,000 Lb semi-style drop leg jack, and an electrical wiring system encased in steel conduit.  7’ double break beavertail available as an option.

22,500 - 37,000

GVWR (Lbs.)

96″

Width

18,000 - 30,000

Payload Capacity (Lbs.)

Key Specifications

Feature 1 Heavy Duty Dexter Axles
Feature 2 Upgraded Dexter E-Z Lube™ System
Feature 3 Upgraded Dexter Forward Self Adjusting Brake™ System
Feature 4 Strong Slipper Spring Suspension & Equlizer System
Feature 5 Solid Oak Deck Floors Not Pressure Treated Pine
Feature 6 I-Beam Frame Construction
Feature 7 Trailer Electrical Wiring System
Feature 8 Integrated Tongue Design

Performance

GVWR – Lbs. 22,500 - 37,000
Total Axle Capacity – Lbs. 18,000 - 30,000
Payload Capacity Lbs. 18,000 - 30,000
Axle Tandem
Single Wheel 8

Dimensions

Standard Deck Width 96″
Standard Deck Length 18′
Deck Height 35″ - 36"
Deck Width Options 102″
Deck Length Options 20′ & 22
Beavertail 5′
I-Beam Mainframe 10″@15 lb - 10″@26 lb
Crossmembers 3″ C @ 4.1 lb - 4″ C @ 5.4 lb
Side Rails 6″C @ 8.2 lb - 8″C @ 11.5 lb

Dual Wheel / Tandem Axle (6000 Series)
