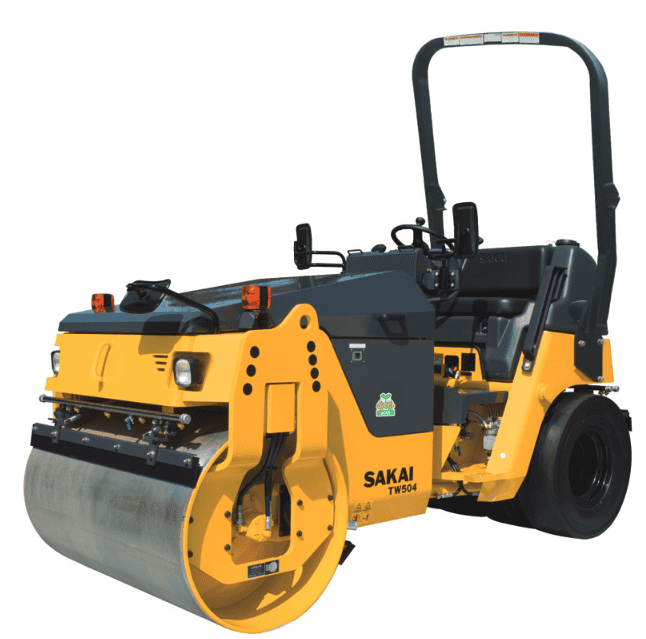

TW504 Asphalt Roller

Compact double drum vibrating roller with all-drum drive and articulated steering.

52 Hz

Frequency

24 Hp

Horsepower

7,740 lbs

Weight

TW504 Asphalt Roller

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
Newletter Signup
This field is for validation purposes and should be left unchanged.

TW504 Asphalt Roller Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Feature #1 Combination of front vibrating drum and rear pneumatic tires
Feature #2 Pneumatic tires provide kneading effect for smooth surface finish
Feature #3 Machined drums with chamfered edges
Feature #4 Excellent drum edge-to-edge visibility
Feature #5 Durable rubber isolator system for vibratory drums
Feature #6 Triple-filtered spray system
Feature #7 ROPS and seat belts standard
Feature #8 comfortable bench seat
Feature #9 Separate release agent tank

Performance

Vibration Frequency 3,100 vpm | 52 Hz
Centrifugal Force 5,955 / 7,710 lbs | 26.5 / 34.3 kN
Nominal Amplitude .012″ / .016″ | .30 / .40 mm
Make & Model Kubota (Final Tier 4) D1703
Horsepower 24 Hp | 18.2 kW @2,200 rpm

Dimensions

Drum Size (w x d) 51″ x 31″ | 1,300 X 800 mm
Weight 7,740 lbs | 3,510 Kg
