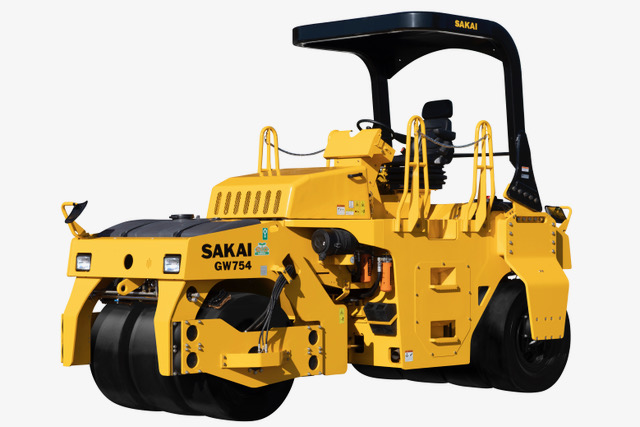

GW754 Asphalt Roller

SAKAI has completely revamped the GW754 vibratory pneumatic tire roller for greater comfort and performance than its predecessor.

Enhanced features include a 180°easy-rotating swivel seat, an increase in speed of 7.5 mph (12 km/h), vibrators with four (4) amplitudes changeable during use, and a Kubota Tier 4 final engine.

77 in

Rolling Width

110 HP

Horsepower

19,510 lbs

Weight

GW754 Asphalt Roller

Let's Get Started

"*" indicates required fields

Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Newletter Signup
This field is for validation purposes and should be left unchanged.

Key Specifications

Feature #1 3,000 VPM – 10 IPF @ 4.55 MPH
Feature #2 Several amplitude and frequency settings/combinations per drum at operator’s station
Feature #3 Counter-rotating eccentric weights
Feature #4 All vibration controls at instrumental panel
Feature #5 Chamfered drum edges
Feature #6 180 seat rotation
Feature #7 Heavy-duty hitch design
Feature #8 Durable rubber isolator system for vibratory drums
Feature #9 Independent drum vibration
Feature #10 Great side and curb clearance
Feature #11 Triple filtered spray system
Feature #12 Dual drum hydrostatic drive

Performance

Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake
Total Rolling width 77 in / 1,950 mm
Make & Model Kubota V3800 Tier4 Final
Horsepower 110 HP @ 2,400 rpm / 81.8 kW @ 2,400 min-1

Dimensions

Front Tire Size WxD 55 x 38 in / 1,390 x 970 mm
Rear Tire Size WxD 77 x 38 in / 1,950 x 970 mm
Weight 19,510 lbs / 8,850 kg
