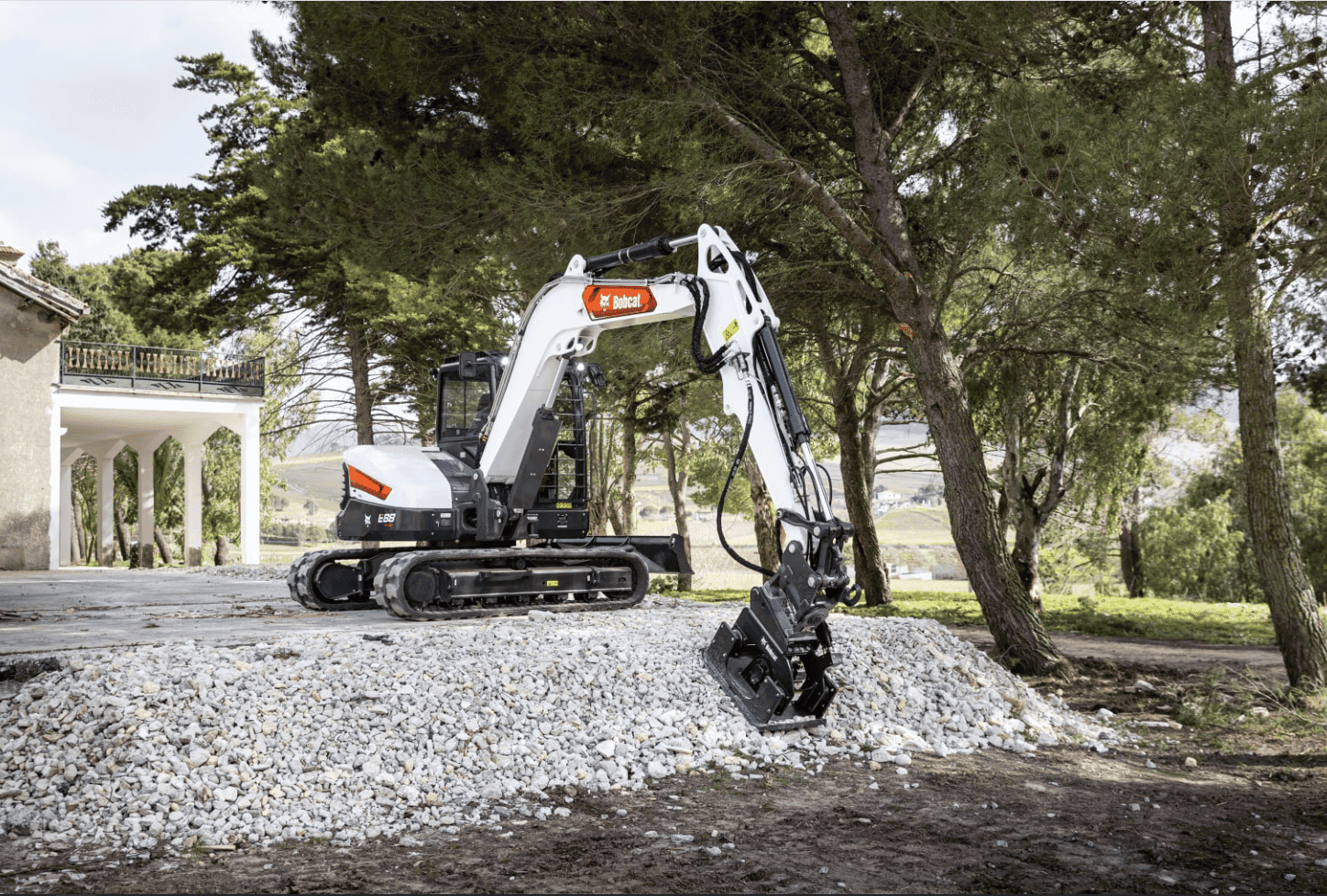

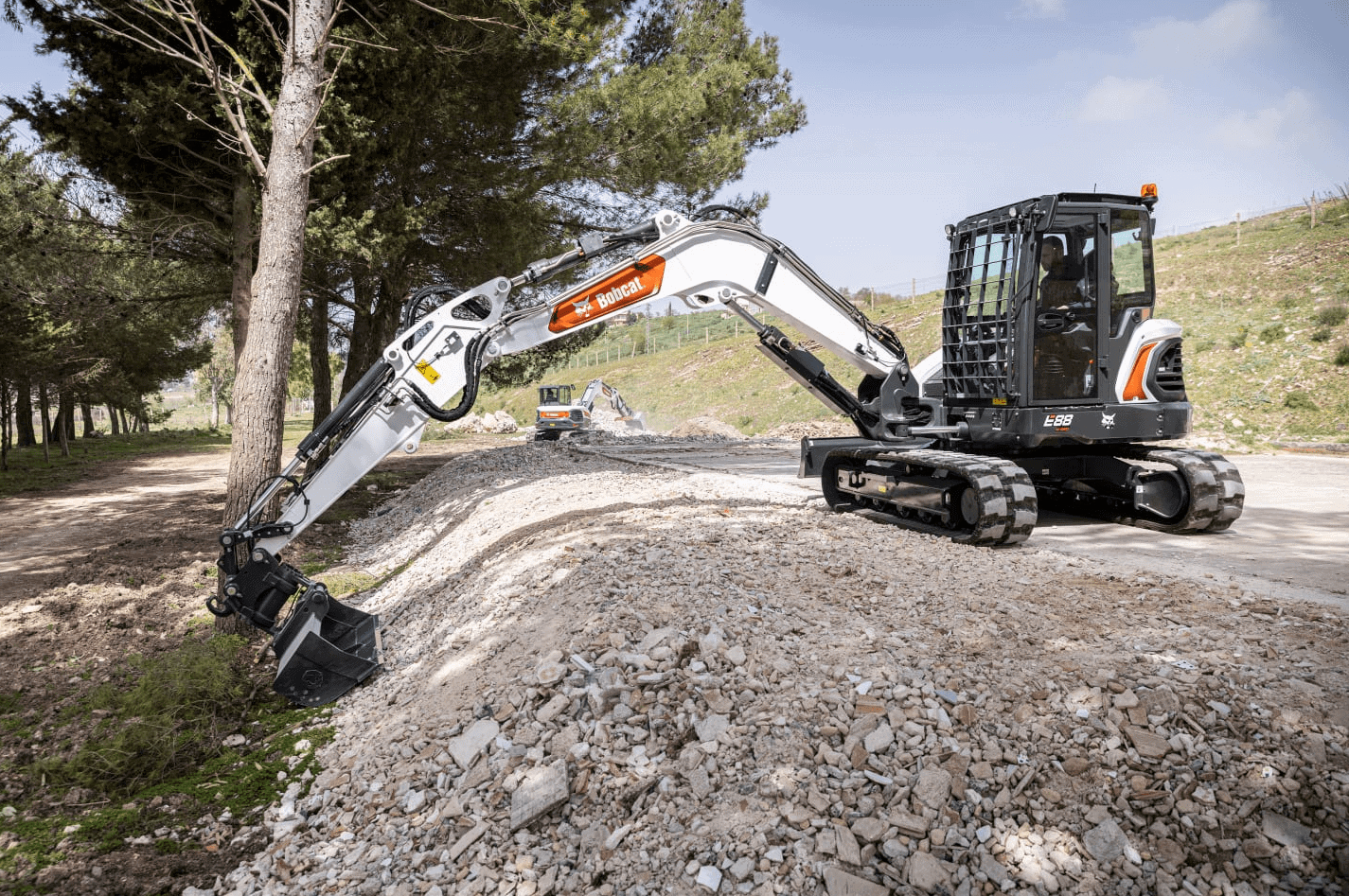

Bobcat E88 Compact Excavator
The largest Bobcat compact excavator delivers big performance in a compact machine.
65 hp
Horsepower
19,600 lb
Operating Weight
15.2 ft
Dig Depth
Bobcat E88 Compact Excavator Specs & Add-Ons
Key Specifications & Add-ons
Cab Enclosure Standard
Heater Air Conditioning Standard
Radio Optional
Tail Swing Type Conventional
Engine Shutdown Standard
Auxiliary Hydraulics Standard
Secondary Auxiliary Hydraulics Optional
Quick Tach System Optional
Rubber Track Standard
Selectable Auxiliary Hydraulic Flow Standard
Angle Blade Optional
Horsepower 65 hp
Bucket Digging Force 15,130 lbf
Maximum Reach at Ground Level 23.5 ft
Width 86.6 in
Tail Swing Type Conventional
Fuel Tank 30.6 gal
Auxiliary Std Flow 25.1 gal/min
Auxiliary Pressure 3,045 psi
Performance
Weight Class 8 t
Travel Speed - High 2.7 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 8,620 lbf
Bucket Digging Force 15,130 lbf
Rated Lift Capacity 10020 lb
Lift Radius 118 in
Boom Swing - Left 64°
Boom Swing - Right 61°
Maximum Dig Depth 15.2 ft
Max Dump Height 16.5 ft
Maximum Reach at Ground Level 23.5 ft
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,100 rpm
Horsepower 65 hp
Turbocharged Engine yes
Optional Turbocharged Engine N/A
Dimensions
Length 249.6 in
Overall Length in Travel Position 249.6 in
Width 86.6 in
Height 100 in
Height with Operator Cab 100 in
Bobcat E88 Compact Excavator Features
Low-Effort Joysticks
Low-effort joysticks in R2-Series excavators respond easily to operator input, helping operators work longer with less fatigue.
Dual Flange Roller System
Dual flange track rollers extend the undercarriage structure closer to the track’s edge so you can dig with greater confidence over the side of the machine.
Multiple Arm Configurations
Multiple arm configurations are available on select models, including standard, long and extendable. Depending on the reach, depth, power, and lifting performance you need, there’s an arm to meet your job requirements.
Premium Cab
Premium comfort gives you the endurance to power through long days and tough jobs. When you step inside the Bobcat compact (mini) excavator cab, you’ll experience plenty of headroom and legroom, clear visibility, a larger suspension seat and more.
Touch Display
The most advanced in-cab display for compact equipment – optional on R2-Series excavators – provides detailed machine information and unprecedented device connectivity. View machine performance information on the wide touchscreen.
Depth Check System
The Bobcat® depth check system delivers accurate dig depth measurement for precise digging performance, eliminating over-digging and the costs associated with backfilling and compacting fill material. R2-Series models are depth check ready.
Pro Clamp System
The Pro Clamp™ system consists of a base component, standard pin-on work tool and optional grading tool. Grab large, small or irregular objects with greater confidence. Create a smooth trench bottom and clean up spoil piles quickly.
Integrated Lift Eye
The lift eye is standard on R2-Series excavators to provide a convenient method for handling objects or moving items in and out of the trench.
Optional Rear Camera
The optional rear camera for R2-Series excavators provides an additional viewpoint for working in certain applications. When needed, you can get a continuous rear view from the operator seat.
