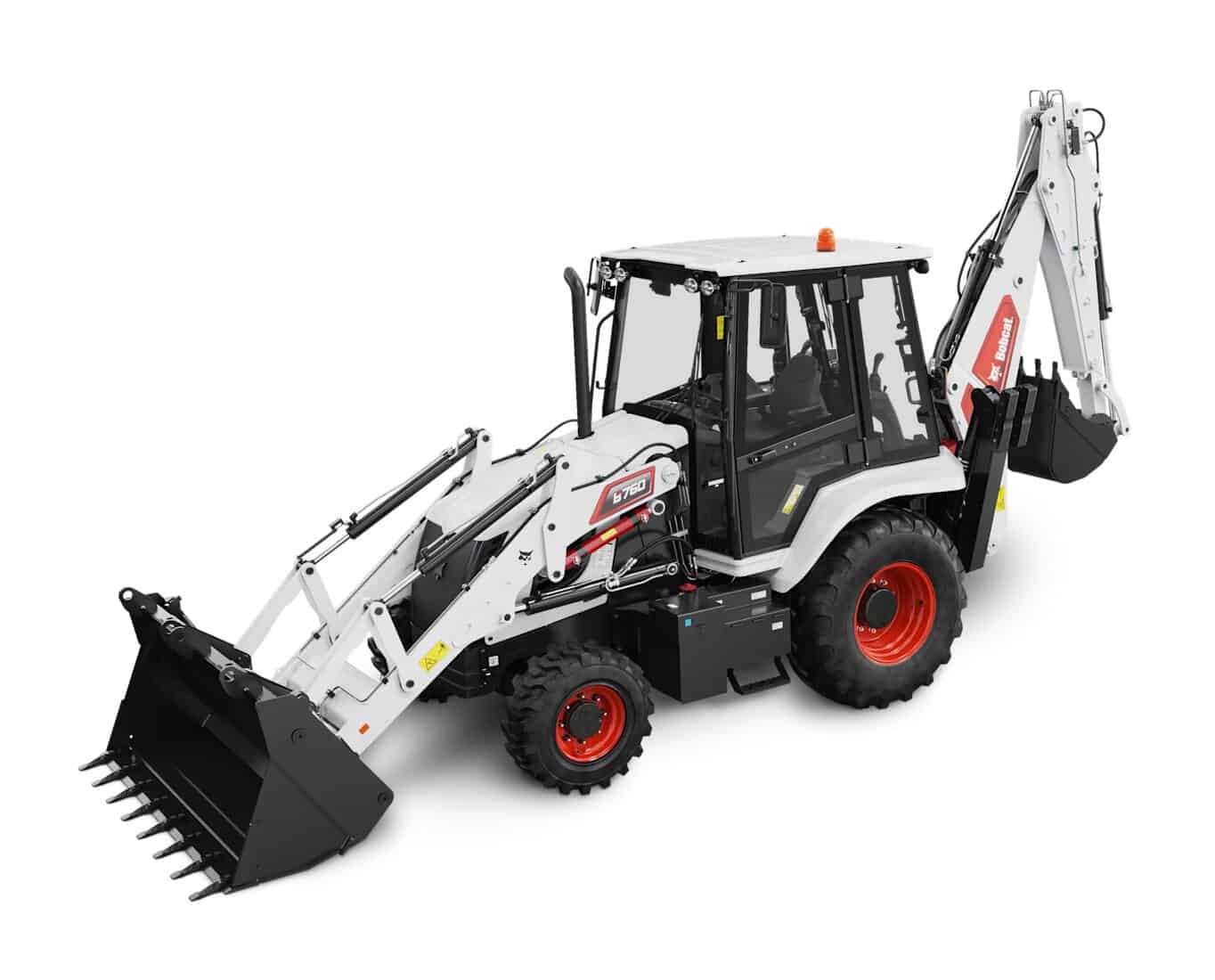

Bobcat B760 Backhoe Loader
Carry and load in front. Dig in back. The Bobcat® B760 backhoe loader can pull double duty on a wide range of tough jobs. Designed with durability, easy operation, simple maintenance and incredible performance in mind. Tackles digging, trenching and attachment work where high-horsepower strength for the job is key, but maneuverability and accessibility are essential. Transport the machine with less trailering thanks to its impressive travel speed
- Standard extendable backhoe arm delivers class-leading dig depth of 18.4 feet
- Nearly 180 degrees of backhoe working range
- 7,985-pound loader lift capacity with 11.3-foot lift height
- 96-horsepower, turbocharged Bobcat engine requires no DPF regeneration
96
Horsepower
7985 lbs
Operating Capacity
19274 lbs
Operating Weight
Bobcat B760 Backhoe Loader Features
Dig, Load & Carry Versatility
Carry and load in front. Dig in back. Bobcat backhoe loaders can pull double duty on a wide range of tough jobs. The backhoe's versatility is further enhanced with optional attachments such as fold-over forks.
More Digging Depth
Designed with legendary Bobcat performance and versatility, the B760 backhoe loader offers the most digging depth in its size class. When you need extra reach on command, the standard-equipped extendable arm delivers 6 to 8 inches more dig depth than other machines of the same size.

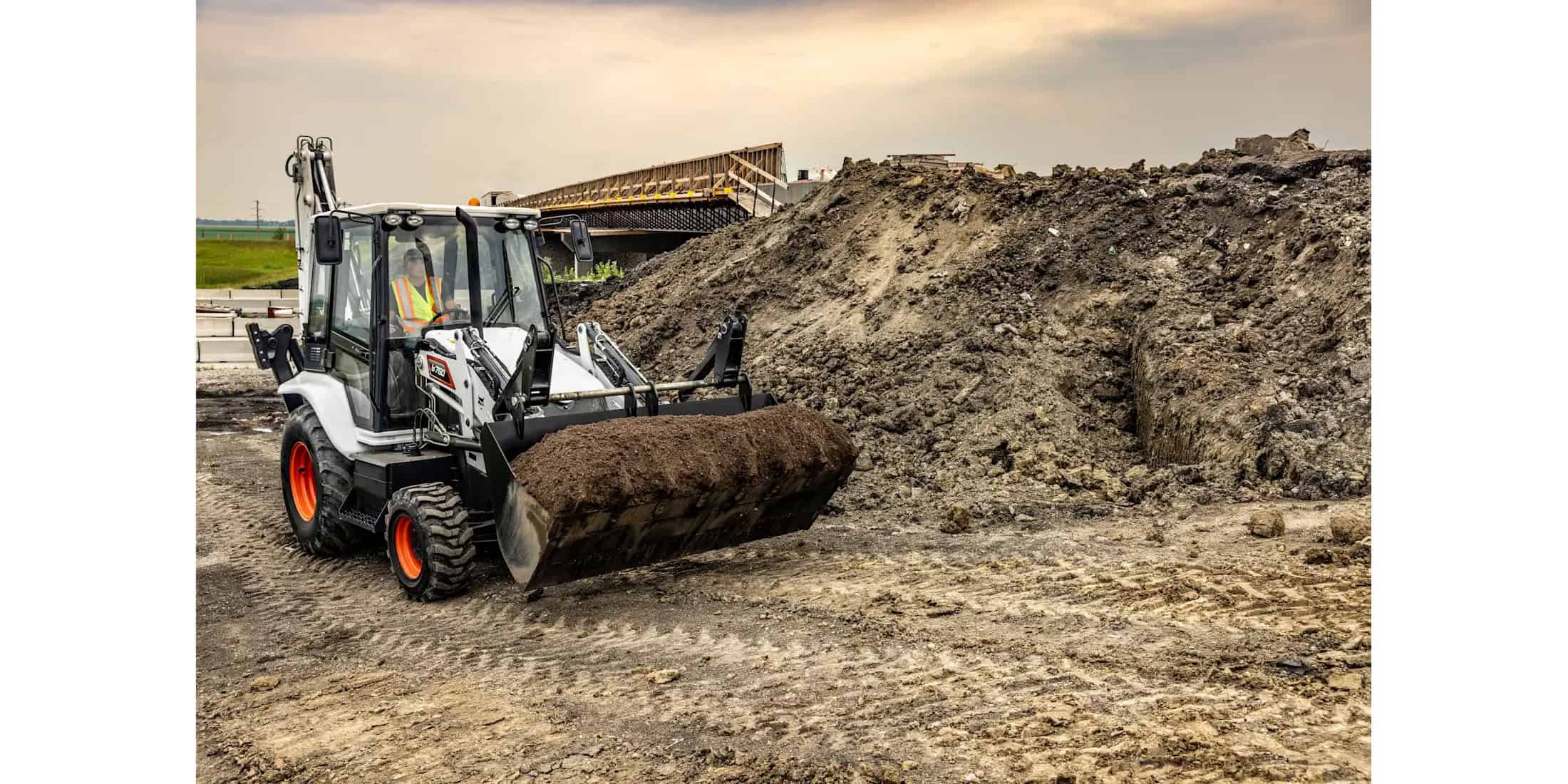

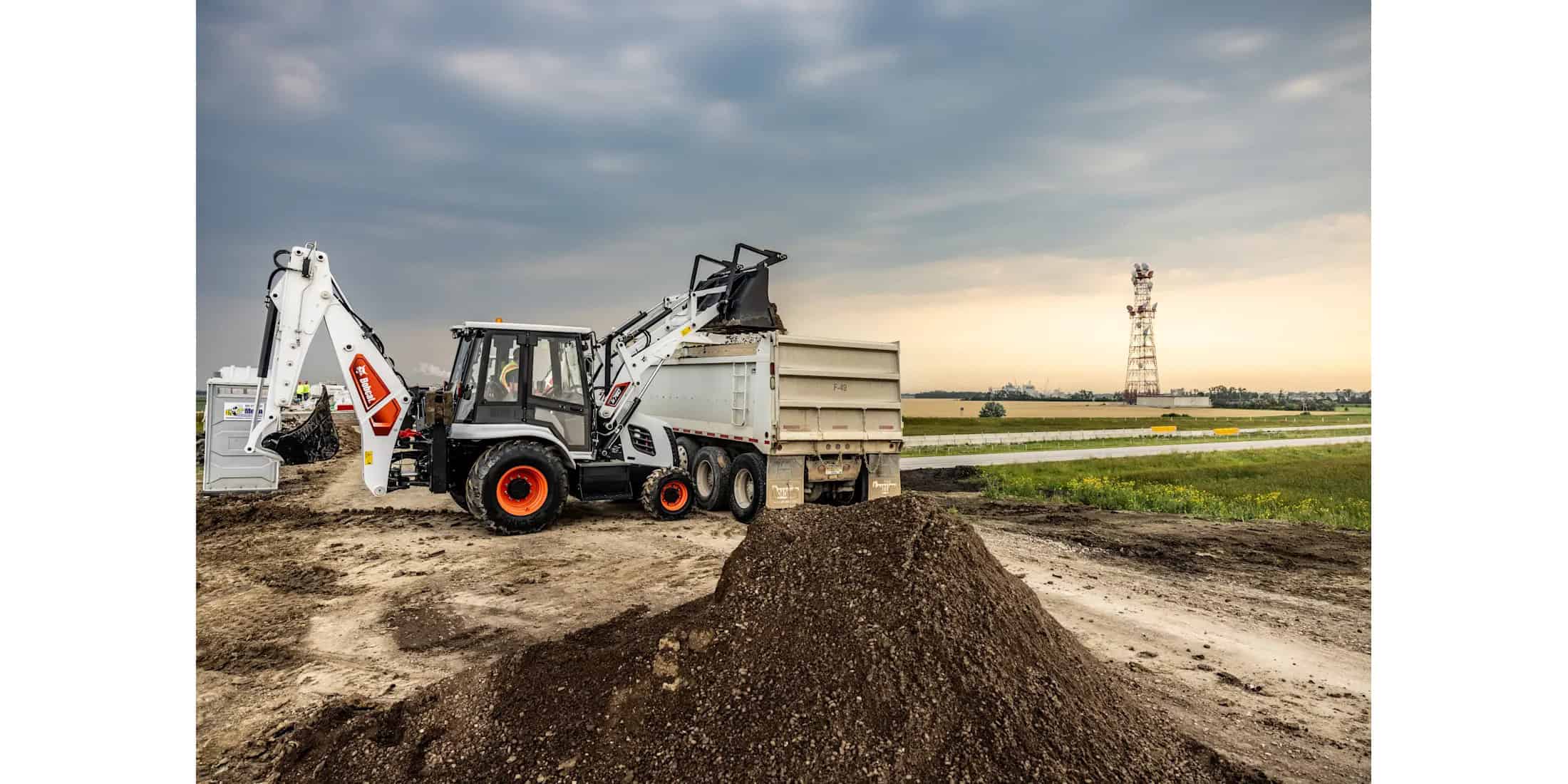

High Loader Lift Height, Reach and Lift Capacity
With 11.3 feet of height to hinge pin and 3.95 feet of reach at full height, operators have ample performance at their fingertips when loading trucks or placing material in hard-to-reach areas. With the standard general purpose bucket, the B760 has a loader rated operating capacity of 7,985 pounds.
Powerful, Efficient Bobcat Engine
The 96 horsepower, 3.4-liter turbo-charged Bobcat engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter (DPF). With fewer components, it’s easy to maintain and there's no downtime for DPF regeneration.

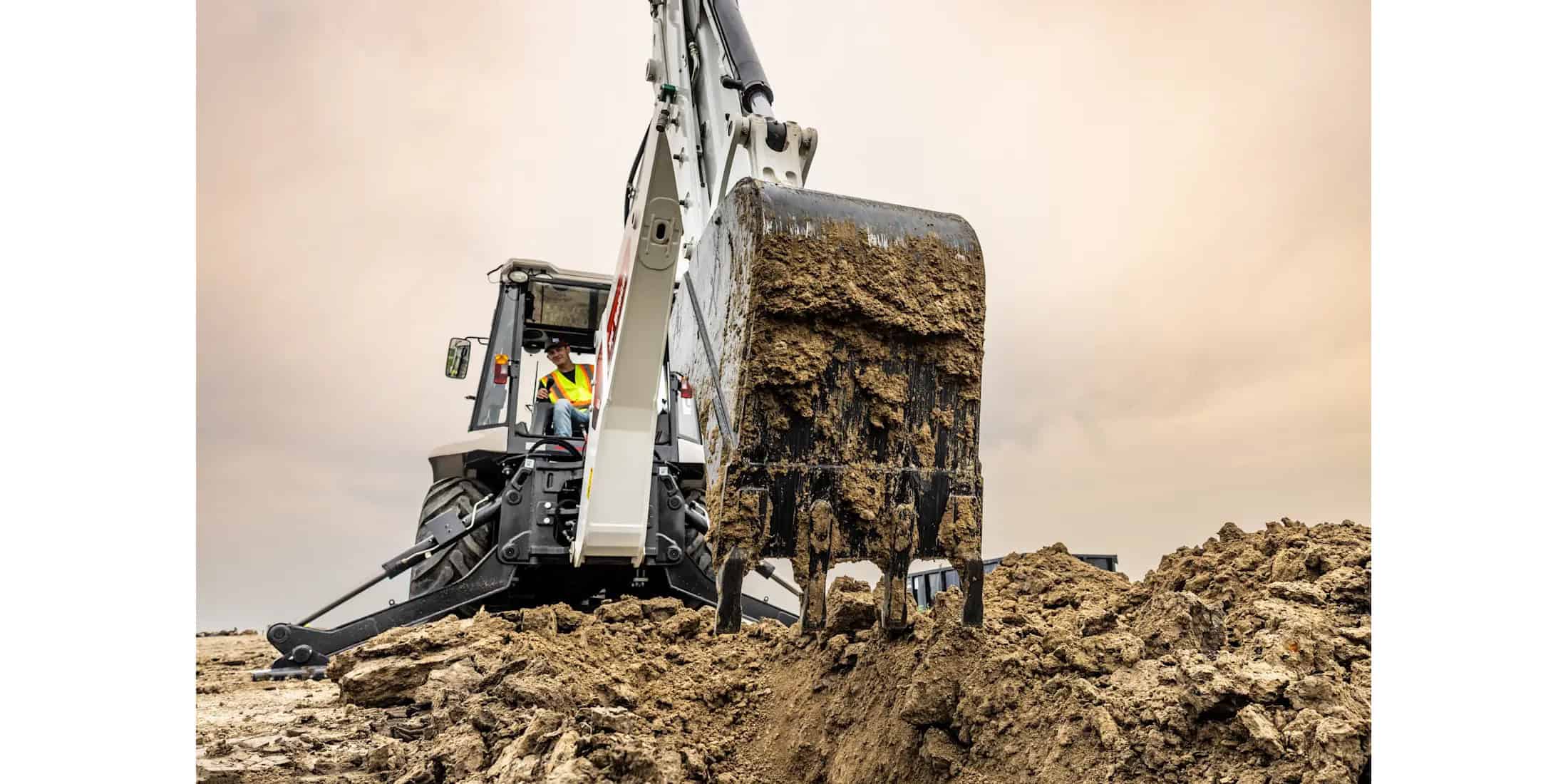

Wide Working Range
Find your backhoe working position and get the job done. Nearly 180 degrees of swing, 22 feet of reach (from swing center), 2,204 pounds of lift capacity at full reach and a maximum digging depth of 18.4 feet provide the performance and working range you need for less repositioning and fast cycle times.
Effective Maneuverability
The Bobcat backhoe loader is big enough for heavy-duty work yet can navigate smaller jobsites and jobsite obstacles.
High Travel Speeds
You can drive down the road at an impressive speed of 22.6 mph with the Bobcat B760, enabling you to quickly move across large jobsites or to entirely different jobsites without having to always use a trailer.
Ride Control
With the standard ride control engaged, you’ll have the best possible comfort while driving on roads or traversing rough terrain on the jobsite. The ride control absorbs shocks in the loader arms, optimizing your travel speed, reducing bucket spillage and extending component life.
Backhoe Swing Lock
The one-piece backhoe swing lock keeps the backhoe secure when driving down the road, across the jobsite or while not in use.
Bobcat B760 Backhoe Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Performance
Dimensions
Bobcat B760 Backhoe Loader
