24.8 hp

Horsepower

550 lb

Operating Capacity

2610 lb

Operating Weight

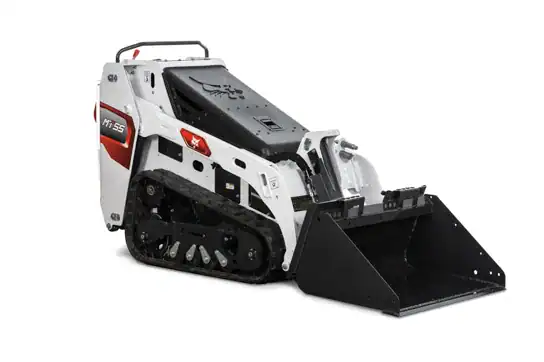

Bobcat MT55 Mini Track Loader Features

Easy Service Access

Easy Service Access

Focus on your work with quick, simple maintenance features like tool-free hood access and easy checks for key maintenance items.

Sealed Rollers

Sealed Rollers

With permanently sealed rollers, there are no daily maintenance tasks to slow you down, eliminating the need for greasing while a sealed oil bath continuously lubricates the bearings.

Minimal Ground Disturbance

Minimal Ground Disturbance

Travel confidently over sensitive ground and worry less about repairs, thanks to low ground pressure that protects turf and finished surfaces while reducing the cost of ground repairs.

Compact Size

Compact Size

The Mini Track Loader delivers concentrated power and excellent maneuverability in tight spaces, measuring just 35.6 inches wide with standard tracks or 41.1 inches wide with wide tracks for added stability.

Replace Manual Labor

Replace Manual Labor

With a footprint not much bigger than a wheelbarrow, Bobcat mini track loaders let you swap hand tools for horsepower, offering a 1,000-pound rated operating capacity, an 80.9-inch lift height, and fast cycle times.

Simple Travel Operation

Simple Travel Operation

With ergonomic, intuitive ISO joystick controls, Bobcat mini track loaders provide easy, comfortable operation and precise machine movement, making them a great fit for operators of any experience level.

Integrated Ride-On Platform

Integrated Ride-On Platform

The integrated ride-on platform elevates you to the ideal vantage point, giving you a wide view to the sides and clear visibility of your attachment.

Optimized Roller Spacing

Optimized Roller Spacing

The track system’s roller spacing helps dampen rough terrain, delivering enhanced travel and a more comfortable ride while tackling tough jobs.

Storage and Cup Holder

Storage and Cup Holder

Keep your jobsite essentials close at hand with convenient storage for personal items and a spot to keep your drink within reach.

Bobcat MT55 Mini Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Horsepower 24.8 hp
Rated Operating Capacity (ISO) 550 lb
Operating Weight 2610 lb
Ground Pressure (Rubber) 4.9 psi
Fuel Tank 7 gal
System Relief @ Quick Couplers 2,900 psi
Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Reverse Travel Stop Panel Standard
Wide Track Optional
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Locations Standard
Ride-on Platform Optional

Performance

Rated Operating Capacity (ISO) 550 lb
Tipping Load 1610 lb
Operating Weight 2610 lb
Travel Speed 7 mph
Travel Speed (2-speed option) 3.5 mph
Travel Speed - Reverse 1.4 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 55 in³
Number of Cylinders 3

Dimensions

Length 93.1 in
Width 35.6 in
Height 49.1 in
Height to Bucket Hinge Pin 71.2 in
Reach @ Maximum Height 18.2 in
Length of track on ground 34 in

Bobcat MT55 Mini Track Loader
