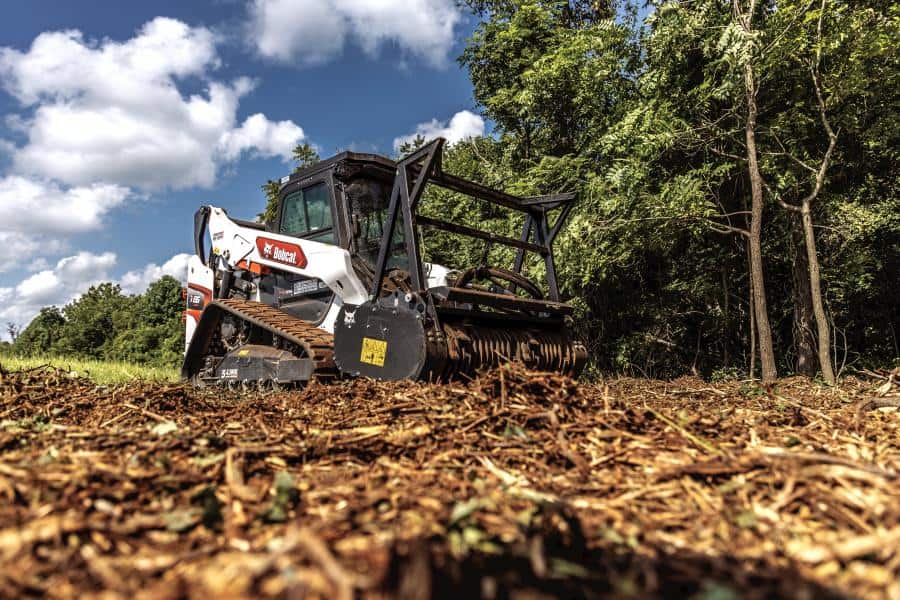

Bobcat T86 Compact Track Loader
The Bobcat® T86 is the most powerful compact track loader we’ve ever built, delivering more usable engine and hydraulic horsepower than ever before. The Bobcat T86 compact track loader features an optimized weight-to-horsepower ratio that ranks this vertical lift machine among the industry’s most powerful, maneuverable, efficient and productive in its size class.
105 hp
Horsepower
12,393 lb
Weight
31.6 gal
Fuel Tank
Bobcat T86 Compact Track Loader
Let's Get Started
"*" indicates required fields
Bobcat T86 Compact Track Loader Specs & Add-Ons
Key Specifications & Add-ons
5-Link Torsion Suspension Undercarriage Optional
Radio Remote Control (SJC required) Optional
Reversing Fan Optional
Standard Display (includes keyless start) Standard
Speed Management Standard
Heated Cloth Air-Ride Seat Standard
LED Front and Rear Lights Standard
Joystick Control Standard
Air Conditioning Standard
Backup Alarm Standard
BICS System (Interlock) Not Applicable
Suspension Seat Standard
Two Speed Travel Standard
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Standard
Ride Control Optional
Horn Standard
Sound Option Standard
Dual-Direction Bucket Positioning Standard
Ground Pressure (Rubber) 4.8 psi
Auxiliary Std Flow 23.6 gal/min
Auxiliary High Flow 36.6 gal/min
Joystick Control Standard
Performance
Hydraulic System Pressure (Standard and High Flow) 3,500 psi
Hydraulic System Pressure (Super Flow) 4,061 psi
Hydraulic Standard Flow 23.6 gal/min
Hydraulic High Flow (optional) 36.6 gal/min
Hydraulic Super Flow (optional) 42 gal/min
System Relief @ Quick Couplers 3,450 psi
Auxiliary Std Flow Auxiliary High Flow
Auxiliary High Flow 36.6 gal/min
Tipping Load 10857 lb
Travel Speed 5.4 mph
Travel Speed (2-speed option) 10.4 mph
Ground Pressure (Rubber) 4.8 psi
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 105 hp
Turbocharged Engine yes
Fuel Tank 31.6 gal
Dimensions
Length without Attachment 120.4 in
Width 78 in
Width (with bucket) 80 in
Height with Operator Cab 83.1 in
Height to Bucket Hinge Pin 132 in
Reach @ Maximum Height 38.4 in
Length of track on ground 66.3 in
Track Width 17.7 in
Track Width - Optional 17.7 in
Ground Pressure (Optional Tracks) 4.8 psi
Bobcat T86 Compact Track Loader Features
5-Link Torsion Suspension
Experience elevated levels of performance and comfort. The industry's most advanced system offers unprecedented durability, reduced maintenance requirements and reduces noise and vibration while you're working.
Powerful Hydraulics
Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.
Selectable Joystick Control
No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.
Increased Lifting Capabilities
R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.
Redesigned Bobcat Engine
R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.
Premium Comfort
Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.
Touch Display
The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio features Bluetooth™ connectivity. Display offers a waterproof touchscreen.
Improved Cooling System
The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high-capacity radiator.
Bob-Tach Attachment Systems
Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.
