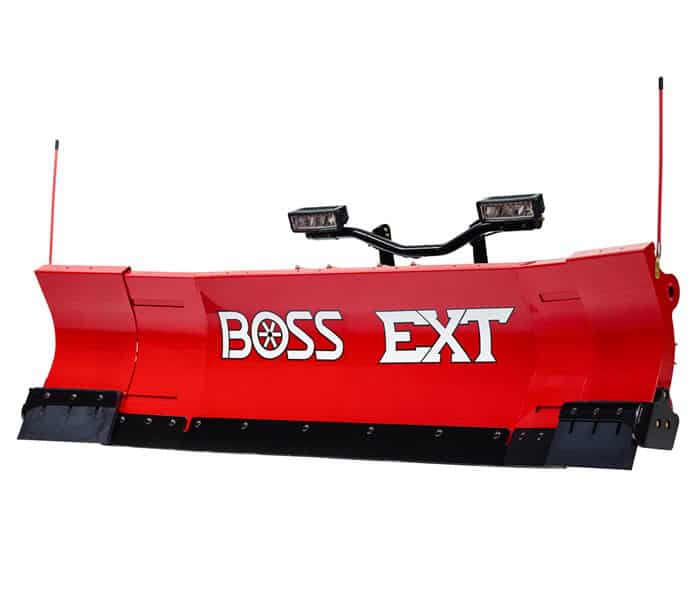

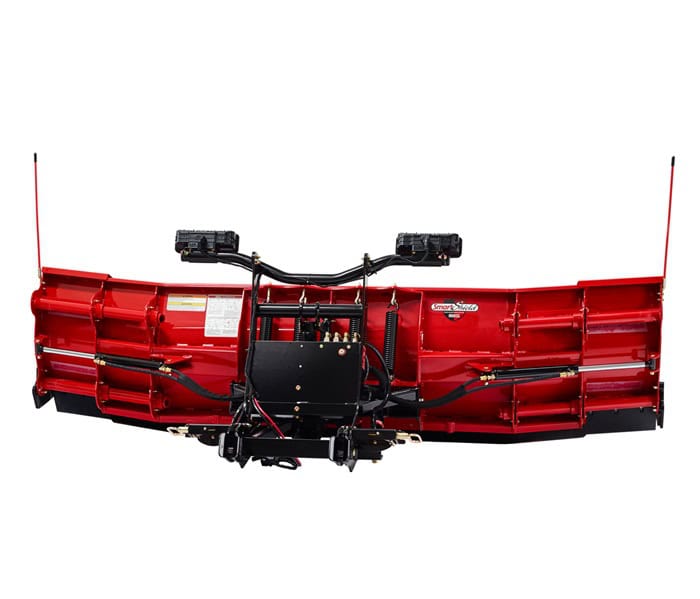

8′-10′ EXT Plow

Quickly and easily expanding from 8 to 10 feet at the touch of a button, the BOSS EXT is equipped to clean up parking lots and wide open spaces. A true 10′ width combined with pitched-forward wings let the EXT take wider passes carrying and moving more snow more efficiently. At 30 inches high with some versatile and flexible addition to your fleet. Another powerful tool in your plowing arsenal that’s built to BACK YOU UP.

96"

Blade Width

30"

Blade Height

970 lb

Weight

Key Specifications

Expandable, Fully Hydraulic, Pitched-Forward Wings Expand from 8' to 10' to cover more ground.
SmartLight 3 LED Headlight System Uses DOT-compliant 100% LED lights and Ice Shield Technology to prevent snow and ice build-up.
Heavy-Duty Push Frame and Push Frame Attachment Bar Provides additional strength and reliability.

Performance

Attachment System RT3 (SmartHitch 2 optional)
Lighting SL3 L.E.D. with Ice Shield Technology
Plow Shoes Optional
Reinforcement Ribs 9 vertical
Shock Absorber 1
Trip Springs 4

Dimensions

Angle Cylinders 1 ½" x 10" (4 cm x 25 cm)
Angle Wing Degrees 20 degrees
Blade Height 30" (76 cm)
Blade Thickness 11-ga Steel
Blade Width Extended 120" (305 cm)
Blade Width Retracted 96" (244 cm)
Blade Width | Curb Guard Width* 96" (244 cm)
Cutting Edge ½" x 6" (1.3 cm x 15 cm)
Lift Cylinder 2" x 1 ⅛ " x 10" (5 cm x 3 cm x 25 cm)
Plowing Width @ 30° Angle 83" (211 cm)
Weight 970 lbs
Wing Cylinders 1 1/2” x 1 1/8” x 12 3/4” (4 cm x 3 cm x 32 cm)
