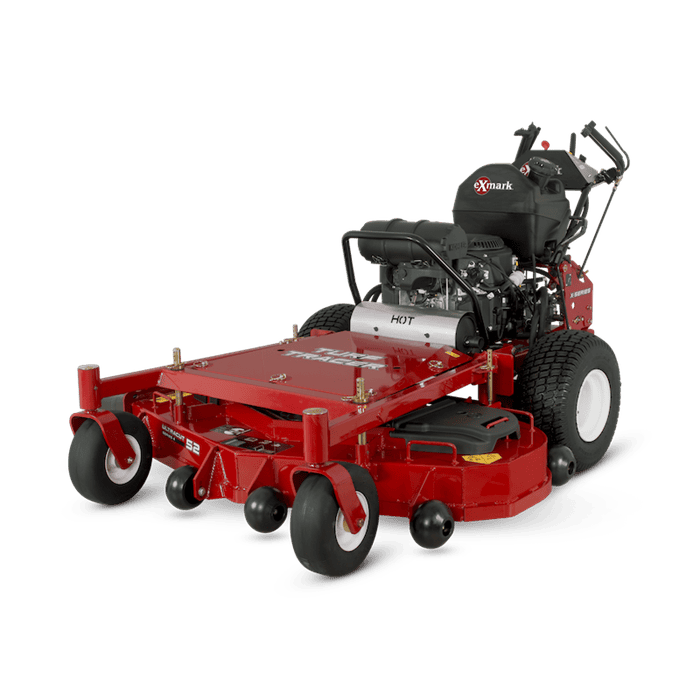

Turf Tracer X-Series

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.

Get Quote Specs Financing Calculator

Call Your Local Bobcat of Indy Location For Unit Availability.

52" - 60"

Mower Deck Width

3,600 rpm

Engine Speed

3

Blades

Turf Tracer X-Series Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Steering Control Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Casters .38" thick caster yoke arms
Front Caster Tires 11 x 4.0-5, smooth tread, semi-pneumatic.
Drive Tires 18 x 8.5-8, 4-ply Turf Master®
Safety Package Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake Lever-actuated mechanical compression.
Electrical 12-volt battery with 20-amp alternator.
Standard Features Enhanced engine hour meter
UPC 193308000138
Patented Enhanced Control System (ECS) Recent university tests showed landscape professionals prefer our control system to all others on the market.
Floating Deck Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.
Superior Air Filtration This series comes standard with heavy-duty canister air filtration systems for longer engine life, more efficient performance and simple maintenance.
Clutch Performance A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life.
Superior Cut Quality UltraCut™ Series 4 deck
Deck Options With the Turf Tracer X-Series, you can choose up to a 60-inch deck.

Performance

Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck 52"
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed Approximately 18,500 fpm.
Blades 2 Blades at 18.00" Length
Engine Model ECV650
Engine Brand Kohler
Engine Series Command™ EFI
Engine Speed 3,600 rpm
Air Filter Heavy-duty canister air filtration system
Drive Description Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.
Speed Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.
Fuel Capacity 5-gallon (18.9-L) fuel tank.
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Manual lift with hairpin from hole to hole for position adjustment.
Fuel System Electronic Fuel Injected
Engine Displacement 694
Drive Hydro-Drive
Fuel Indicator None
Carb Compliant Yes
Fuel Type Gas EFI
Engine Spec 3017

Dimensions

Width 64.8 in. (164.6 cm)
Length 84.8 in. (215.4cm)
Height 45.0 in. (114.3 cm)
Curb Weight 720
