Turf Tracer S-Series

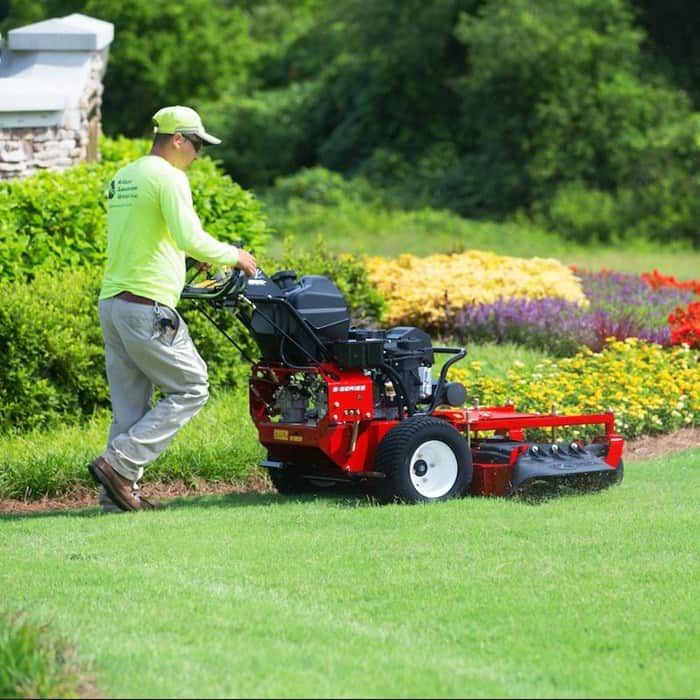

With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity.

Get Quote Specs Financing Calculator

Call Your Local Bobcat of Indy Location For Unit Availability.

36" - 52"

Mower Deck Width

3,600 rpm

Engine Speed

2

Blades

Turf Tracer S-Series Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Steering Control Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Casters .38" thick caster yoke arms
Front Caster Tires 9 x 3.5-4, smooth-tread, semi-pneumatic.
Drive Tires 16 x 6.5-8, 4-ply Turf Master®
Safety Package Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake Lever-actuated mechanical compression.
Electrical No battery, recoil start w/ 5 amp clutch coil
Standard Features Engine hour meter
UPC 193308000060
New Electric Clutch Proven to be among the most durable and reliable in the business, Exmark’s superior electric clutch technology allows for easier and faster belt servicing.
Increased Power The Commercial 30 X-Series is equipped with Kohler’s premier single-cylinder commercial engine - the Command Pro CV200.The increased displacement of the powerful Kohler engine gives it 30-percent more torque than competing engines to quickly power through the toughest, thickest grass.
Forget Flats Standard 9” x 3.5-4” smooth-tread, semi-pneumatic front caster tires virtually eliminate tire repair.
Hour Meter Comes Standard Improve maintenance records and track service intervals for longer life.
Patented Enhanced Control System (ECS) Recent university tests showed landscape professionals prefer our control system to all others on the market.
Floating Deck Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.

Performance

Deck Style Floating Deck
Deck Style Description FixFull-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.ed deck, Rear-discharge bagger standard with option to mulch.
Width / Cutting Deck 36"
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed Approximately 18,500 fpm.
Blades 2 Blades at 18.00" Length
Engine Model FS481V
Engine Brand Kawasaki
Engine Series V-Twin
Engine Speed 3,600 rpm
Air Filter Standard Engine Manufacturer's air filter
Drive Description Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts.
Speed Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse.
Fuel Capacity 5-gallon (18.9-L) fuel tank.
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Manual lift with hairpin from hole to hole for position adjustment.
Fuel System Carbureted
Engine Displacement 603
Drive Hydro-Drive
Fuel Indicator None
Carb Compliant Yes
Fuel Type Gas Carbureted
Engine Spec _S28

Dimensions

Width 47.5 in. (120.7 cm)
Length 77.7 in. (197.4 cm)
Height 42.0 in. (106.7 cm)
Curb Weight 573
