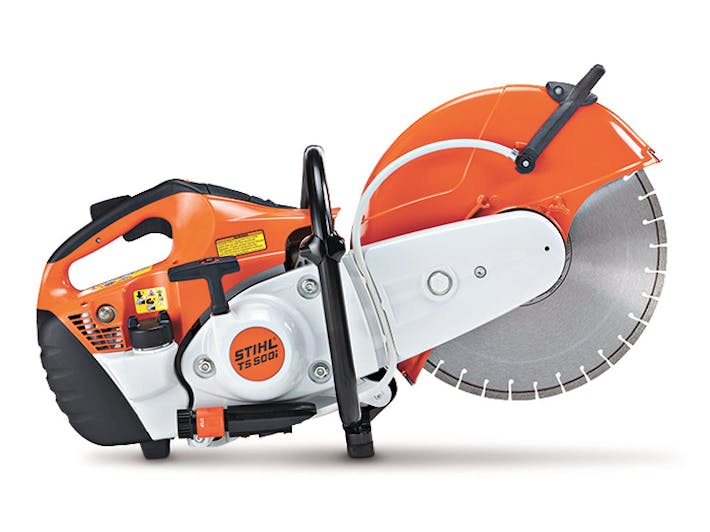

TS 500i STIHL Cutquik® Cut-Off Machine
Abrasive cutting just got more cutting edge. STIHL introduces another industry first with the
TS 500i STIHL Cutquik® cut-off machine – the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime and pull.
Lightweight, powerful and fuel-injected, this 14” cut-off machine is designed for superior balance and handling during your toughest jobs. And just like a powerful sports car, you will be impressed with the amazing acceleration of this machine, getting you back to speed faster than you thought possible.
The STIHL TS 500i also features a high-efficiency engine with low exhaust emissions and optimal torque throughout its RPM range. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting and its X2 air filtration system maintains an incredible 99.96% cleaning efficiency. This machine has it all, so very little can stand in your way.
NOTE: Abrasive wheel included. Diamond wheel (shown) sold separately.
Gas
POWER SOURCE
22.5 lbs.
WEIGHT
4.9 in.
MAXIMUM CUTTING DEPTH
TS 500i STIHL Cutquik® Cut-Off Machine
Let's Get Started
"*" indicates required fields
TS 500i STIHL Cutquik® Cut-Off Machine Specs & Add-Ons
Key Specifications
Ergonomic Grip The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
X2 Air Filtration System The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
Reduced-Emission Engine Technology - Caring for Nature The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
STIHL ElastoStart™ The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
Performance
POWER SOURCE Gas
WEIGHT 22.5 lbs.
MAXIMUM CUTTING DEPTH 4.9 in.
MAXIMUM WHEEL SIZE 14 in.
MAXIMUM SPINDLE SPEED 5,350 rpm
ARBOR SIZE .787
ENGINE SPEED 9,000 rpm
ENGINE POWER 5.2 bhp
