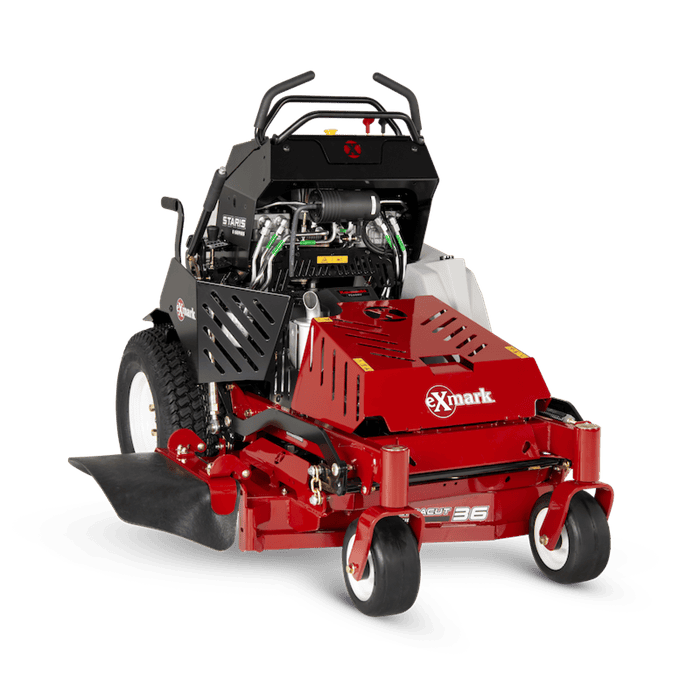

Staris E-Series

Available with a choice of 32- or 36-inch UltraCut Series 3 cutting decks, Staris E-Series commercial stand-on mower strike the perfect balance of productivity and value. The compact size of the 32-inch model allows it to fit through 36-inch gates and into tight spaces – a must for commercial mowing. A top ground speed of 7.5 mph enables landscape pros to mow more properties, more quickly, without the fatigue typically experienced with a small walk-behind mower. A large, open operator platform allows for easy step-on step-off. Constructed from heavy-duty tubular steel, Staris frames feature the same wall thickness as our industry-standard Lazer Z zero-turn riders. Proven Kawasaki V-twin commercial engines feature cast-iron cylinder liners, pressurized lubrication and a rotating grass chopper screen to minimize debris in the cooling system.

32" - 36"

Mower Deck Width

3,600 rpm

Engine Speed

2

Blades

Key Specifications

Tractor Frame Welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Twin levers with adjustable front reference bar to modify forward ground speed.
Front Caster Tires 9 x 4.50-5, smooth-tread, semipneumatic tires with sealed ball bearings.
Drive Tires 21x7.00-10 Kenda K505
Parking Brake Lever-actuated bar brake.
Blade Spindles No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
Electrical 12-volt battery with 15-amp alternator.
Cup Holder No
Casters .38 thick caster yoke arms with sealed ball bearings
Standard Features Engine Hour Meter
UPC 193308215563

Performance

Deck Construction 7-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Deck Style Floating Deck
Deck Style Description Full-floating Series 4. Side discharge standard, with molded discharge chute.
Width / Cutting Deck 32"
Cutting Heights 1.0" (2.54 cm) to 4.5" (11.4 cm) in 0.25" (.64 cm) increments
Blades 2 Blades at 16.25" Length
Blade Tip Speed Approximately 18,500 fpm.
Engine Brand Kawasaki
Engine Model FS600V
Fuel System Carbureted
Engine Series V-Twin
Engine Speed 3,600 rpm
Engine Displacement 603
Air Filter Standard Engine Manufacturer's air filter
Drive System Hydro-Drive
Drive Description Two Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors.
Speed Infinitely variable speed selection 0–7.5 mph (12.1 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
Fuel Capacity 5-gallon (18.9-L), single fuel tank with single fill location.
Fuel Indicator Yes - Float Gauge
Drive Wheel Release Allows unit movement without engine running.
Safety Package Operator Presence Controls (OPC) with safety interlock system indicators
Deck Lift Single point HOC
Carb Compliant Yes
Fuel Type Gas Carbureted
Engine Spec _S36

Dimensions

Width 44.9
Length 58.103
Height 47.3
Curb Weight 702

Staris E-Series
