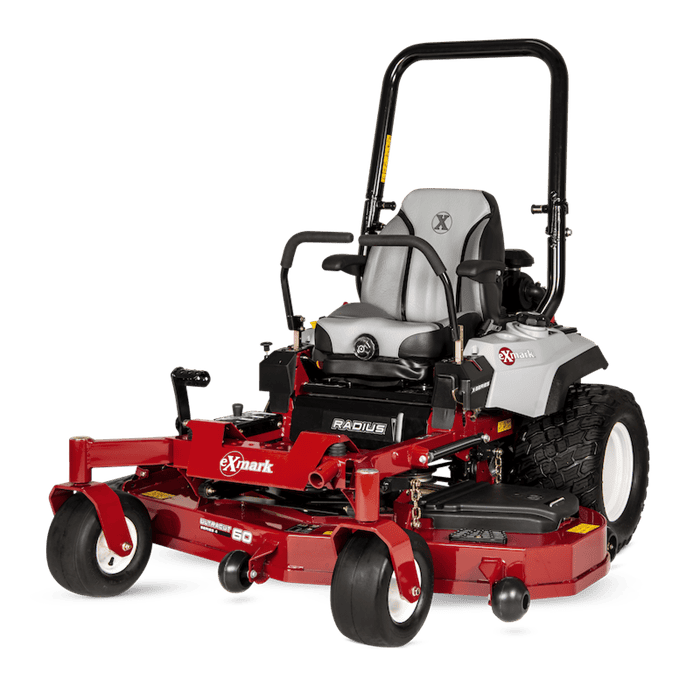

Radius X-Series
If you’re looking for the power and productivity of a premium commercial mower on a budget, you’re looking for a Radius X-Series. It combines features proven on our premier machines with the unbeatable value and efficiency you’ve come to expect from the Radius.
52" - 60"
Mower Deck Width
3750 rpm
Engine Speed
3
Blades
Radius X-Series
Let's Get Started
"*" indicates required fields
Radius X-Series Specs & Add-Ons
Key Specifications
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.
Drive Tires 24 x 12-12 K3012
Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Sealed Taper Roller Bearings
Parking Brake Lever-actuated pawl brake.
Seat Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter, cup holder, tow hitch and jack receiver
UPC 193308219998
Performance
Air Filter Heavy-duty canister air filtration system
Fuel System Carbureted
Fuel Type Gas Carbureted
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse.
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop electromagnetic 225-ft-lb clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .375" thick caster yoke arms
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blades 3 Blades at 20.50" Length
Engine Brand Kawasaki
Engine Model FX921V
Engine Displacement 999cc
Engine Series V-Twin
Engine Speed 3750 rpm
Engine Spec _S04
Dimensions
Width / Cutting Deck 42"
Width 73 in (185 cm)
Length 82 in (208 cm)
Height 70 in (178 cm)
Curb Weight 60"
