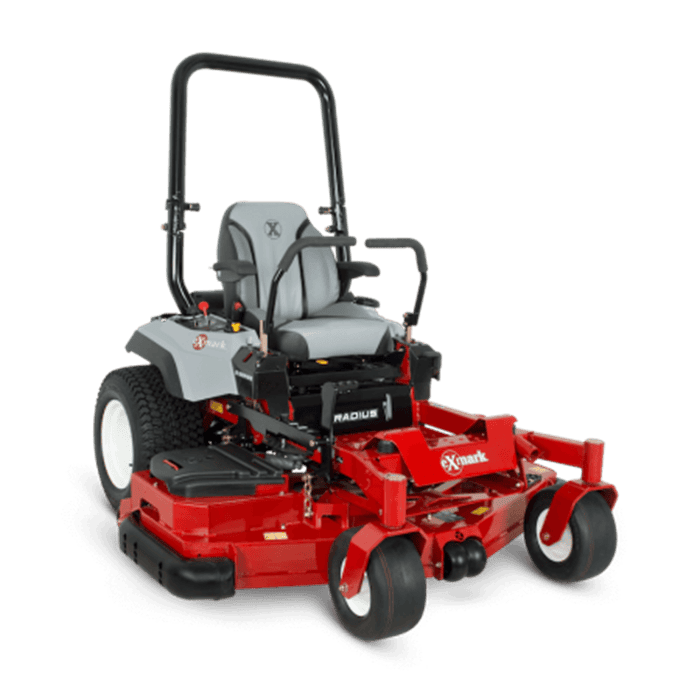

Radius S-Series Rear Discharge

Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. Choose from 48-, 52-, or 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for a superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.

Get Quote Specs Financing Calculator

Call Your Local Bobcat of Indy Location For Unit Availability.

60"

Mower Deck Width

3700 rpm

Engine Speed

3

Blades

Radius S-Series Rear Discharge Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.
Drive Tires 23 x 10.5-12 Super Turf
Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings (126-3289)
Parking Brake Lever-actuated pawl brake.
Seat Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter, cup holder, tow hitch and jack receiver
UPC 193308215778

Performance

Air Filter Cyclonic Air Cleaner
Fuel System Carbureted
Fuel Type Gas Carbureted
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed Infinitely variable speed selection from 0–9.0 mph (14.5 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
Drive Wheel Release Allows unit movement without engine running.
Casters .375" thick caster yoke arms
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blades 3 Blades at 20.50" Length
Engine Brand Kawasaki
Engine Model FX730V
Engine Displacement 726
Engine Series V-Twin
Engine Speed 3700 rpm
Engine Spec _S26

Dimensions

Width / Cutting Deck 60"
Width 66 in (168 cm)
Length 84 in (213 cm)
Height 70 in (178 cm)
Curb Weight 1044

Radius S-Series Rear Discharge
