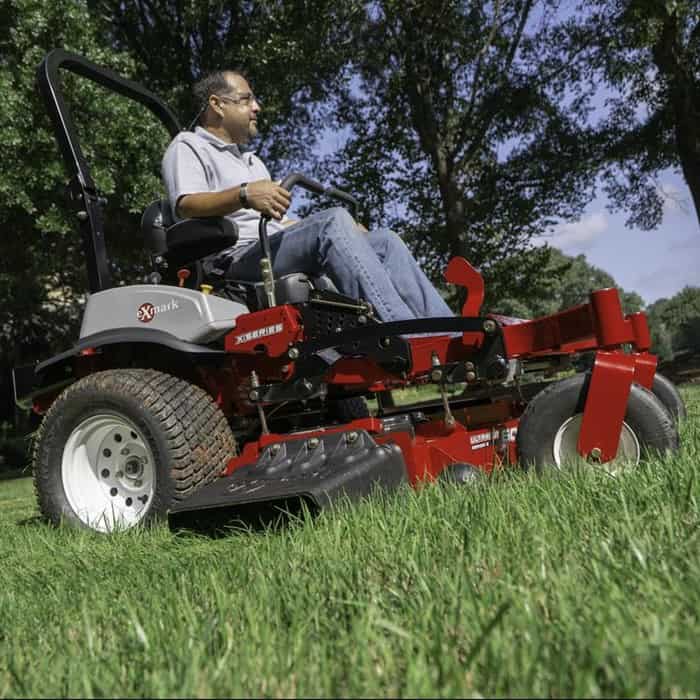

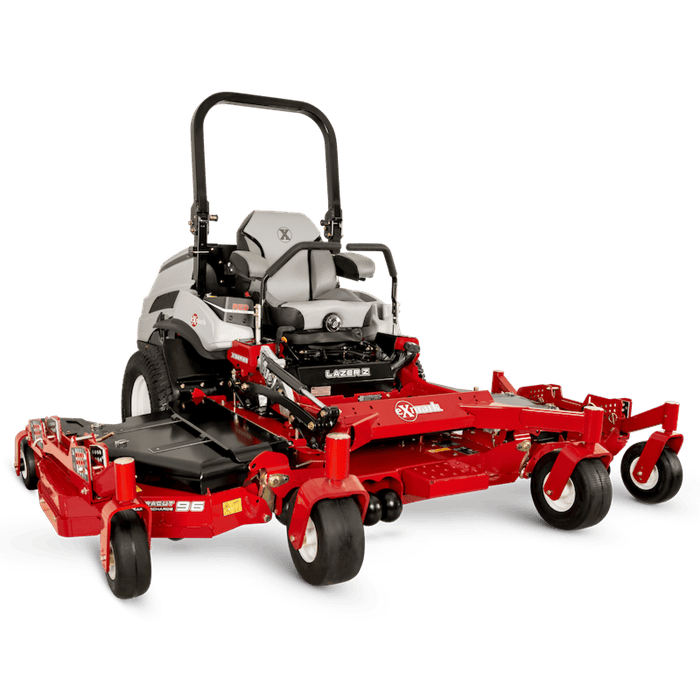

Lazer Z X-Series

With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent the state-of-the-art in commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck.

52" - 96"

Mower Deck Width

3,750 RPM

Engine Speed

3

Blades

Lazer Z X-Series

Let's Get Started

"*" indicates required fields

Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Newletter Signup
This field is for validation purposes and should be left unchanged.

Lazer Z X-Series Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
Drive Tires 24 x 12.0-12, 4-ply Turf Master®
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires 13 x 6.5-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter and cup holder
UPC 193308000671

Performance

Air Filter Heavy-duty canister air filtration system
Fuel Type Gas Carbureted
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
Fuel Indicator Yes - electronic Sender
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Speed Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse.
Carb Compliant Yes
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blades 3 Blades at 20.50" Length
Engine Brand Kawasaki
Engine Model FX801V
Engine Displacement 852
Engine Series V-Twin
Engine Speed 3,750 RPM

Dimensions

Width / Cutting Deck 60"
Width 72.8 in. (184.9 cm)
Length 83.1 in. (211.1 cm)
Height 70.5 in. (179.1 cm)
Curb Weight 1302
