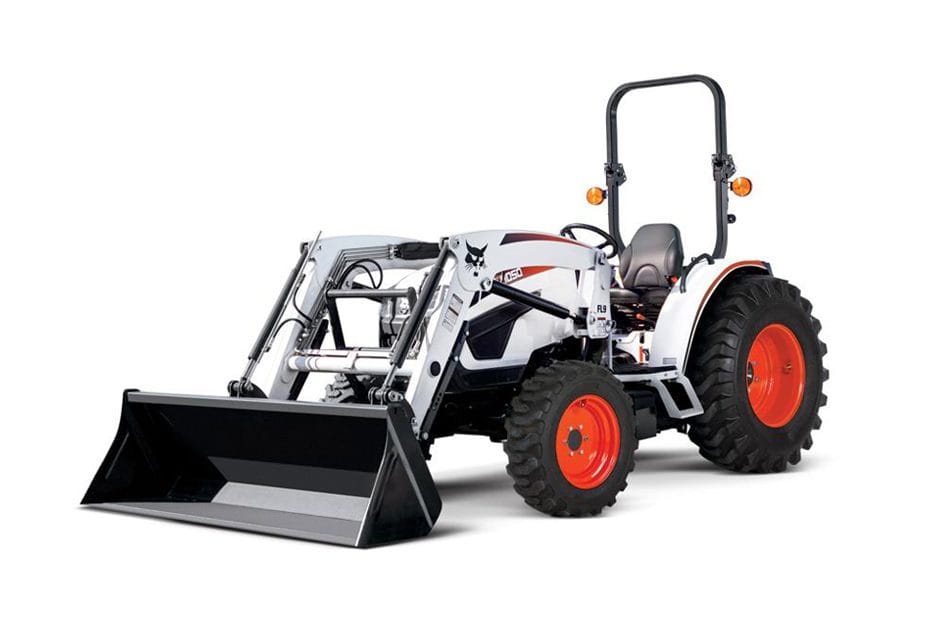

Bobcat CT4055 Compact Tractor

This turbo-charged, open-cab 55-hp tractor features shift-on-the-fly manual synchro transmission.

50.3 hp

Engine Horsepower

49.6 hp

PTO Horsepower

3,745 lb

Operating Weight

*Advertised Price Disclaimer: The displayed price is the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote.

Bobcat CT4055 Compact Tractor

Let's Get Started

"*" indicates required fields

Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Newletter Signup
This field is for validation purposes and should be left unchanged.

Bobcat CT4055 Compact Tractor Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 50.3 hp
Lift Capacity at 24" behind Lift Point 2,716 lb
PTO HP 49.6 hp
Transmission Type Manual 8x8 synchro
Width 70 in
Turning Radius 8' 7"
Wheelbase 5' 11"
Fuel Tank 11.9 gal
Implement Hydraulic Flow 9.6 gal/min
Total Hydraulic Flow 14.1 gal/min
Steering Hydraulic Flow 4.5 gal/min
Brake Type Wet Multi Disc
Transmission Type Manual 8x8 synchro

Performance

Operating Weight 3,745 lb
Travel Speed 17.5 mph
Travel Speed - Reverse 17 mph
3-Point Hitch Category 1
3-pt Lift Control Type Hydraulic Position Control System
Lift Capacity at 24" behind Lift Point 2,716 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 45.6 hp
Mid PTO - RPM 2000
Emissions Tier (EPA) Tier 4
Horsepower 50.3 hp
Displacement 111 in³
Number of Cylinders 3
Gross HP 50.3 hp
Engine Model 3FT-THL4-U

Dimensions

Length 125.5 in
Width 70 in
Height 97.4 in
Ground Clearance 15.3 in
Turning Radius 8' 7"
Wheelbase 5' 11"
Front Tire Size Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)
Rear Tire Size Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)
Loader Lift Height 8' 8"
Lift Capacity @ 500mm ahead of bkt pivot 1,795 lb
Bucket Width 5' 6"

Bobcat CT4055 Compact Tractor Features

Open Cab

Open Cab

Get excellent sightlines to the work and great all-around visibility from the open cab. You’ll also appreciate how fast, and easy it is to get on or off the tractor from either side throughout the day when changing implements or loading materials. The foldable Roll-Over Protective Structure (ROPS) protects the operator in the event of a rollover, and can be temporarily lowered when driving under trees or into garages.

Transmission Options

Transmission Options

Choose from two transmission options on 4000 platform models. Manual synchro shuttle transmission offers shift-on-the-fly functionality similar to a stick-shift automobile. Clutch and shift across eight forward and eight rear speeds as you travel. 3-Range HST hydrostatic transmission option uses hydraulic pressure to change speed, operating similarly to a vehicle. You only need to stop moving if you want to change your range.

Standard Features

Standard Features

Get the features standard on all Bobcat tractors, including four-wheel drive, high ground speeds, rear PTO and three-point hitch, and a low-noise, low-vibration engine. Plus other standard features including: Turbo-charged performance for consistently high performance and low-end torque. Power and tilt steering for near-effortless maneuverability. Lever-controlled three-point hitch for simple implement connection
