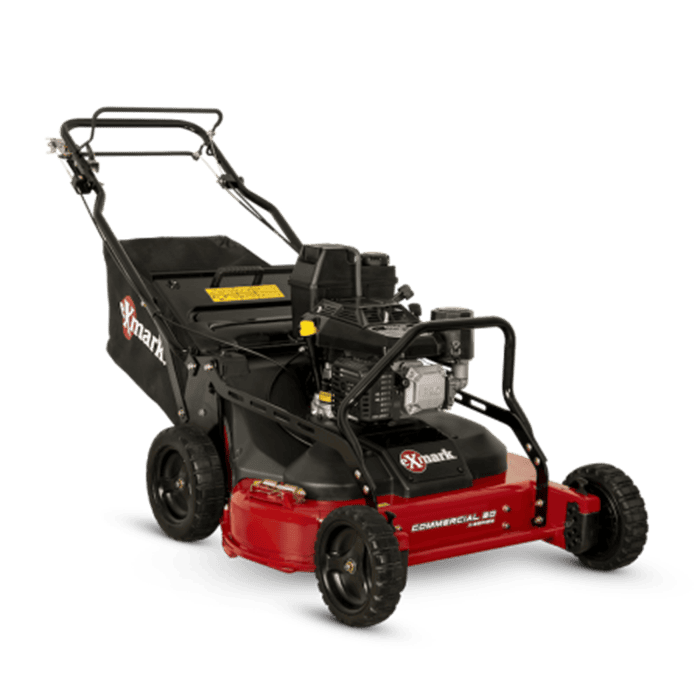

Commercial 30 X-Series
Do you want the portability and versatility of a 30-inch deck width in your next commercial walk-behind mower? Look no further than the Exmark Commercial 30-inch X-Series. Travel at variable speeds between 0 and 3.8 mph thanks to a powerful Kawasaki engine. Produce precise turf length with Exmark’s patented height adjustment system. Tackle any project with fewer breaks with a one-gallon fuel tank.
30"
Mower Deck Width
3,500 rpm
Engine Speed
2
Blades
Commercial 30 X-Series Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Front Caster Tires 9" x 2.4", semi-pneumatic
Drive Tires 10.5" x 3.0", semi-pneumatic
Safety Package Blade Brake Clutch (BBC).
Parking Brake Calipar Disc Brake
UPC 193308215570
Upgraded Transmission The heavy-duty wet clutch transmission and self-tensioning belt drive are designed for minimum maintenance and maximum reliability in the most demanding commercial applications. The Commercial 30 X-Series also includes a parking brake.
Increased Power The Commercial 30 X-Series is equipped with Kohler’s premier single-cylinder commercial engine - the Command Pro CV200.The increased displacement of the powerful Kohler engine gives it 30-percent more torque than competing engines to quickly power through the toughest, thickest grass.
Increased Wheel Torque The upgraded heavy-duty transmission takes advantage of the Kohler engine’s additional power. It delivers increased wheel torque to power up hills, with easier tracking on side hills.The positive drive design couples both drive wheels for maximum traction in all conditions.
Performance
Deck Style Fixed Deck
Deck Style Description Fixed deck, Rear-discharge bagger standard with option to mulch.
Width / Cutting Deck 30"
Deck Construction 4.6" Deep Stamped Steel with welded reinforcement
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.5" (1.3 cm) increments.
Blade Tip Speed Approximately 18,500 fpm.
Bag Capacity 2.5 bushels (20 gallons).
Blades 2 Blades at 15.4" Length
Engine Model FJ180V
Engine Brand Kawasaki
Engine Series FJ KAI BBC
Engine Speed 3,500 rpm
Air Filter Dual element air cleaner
Drive Description Self-propelled, rear-wheel gear-driven.
Speed 0.0 mph to 3.8 mph (6.1 kmph) forward.
Fuel Capacity 1 gallon (3.8-L)
Fuel System Carbureted
Engine Displacement 179
Drive Belt
Fuel Indicator None
Carb Compliant Yes
Fuel Type Gas Carbureted
Engine Spec BM21
Dimensions
Width 31.9 in. (81cm)
Length 68 in. (172.7 cm)
Height 38.3 in. (97.2 cm)
Curb Weight 185
