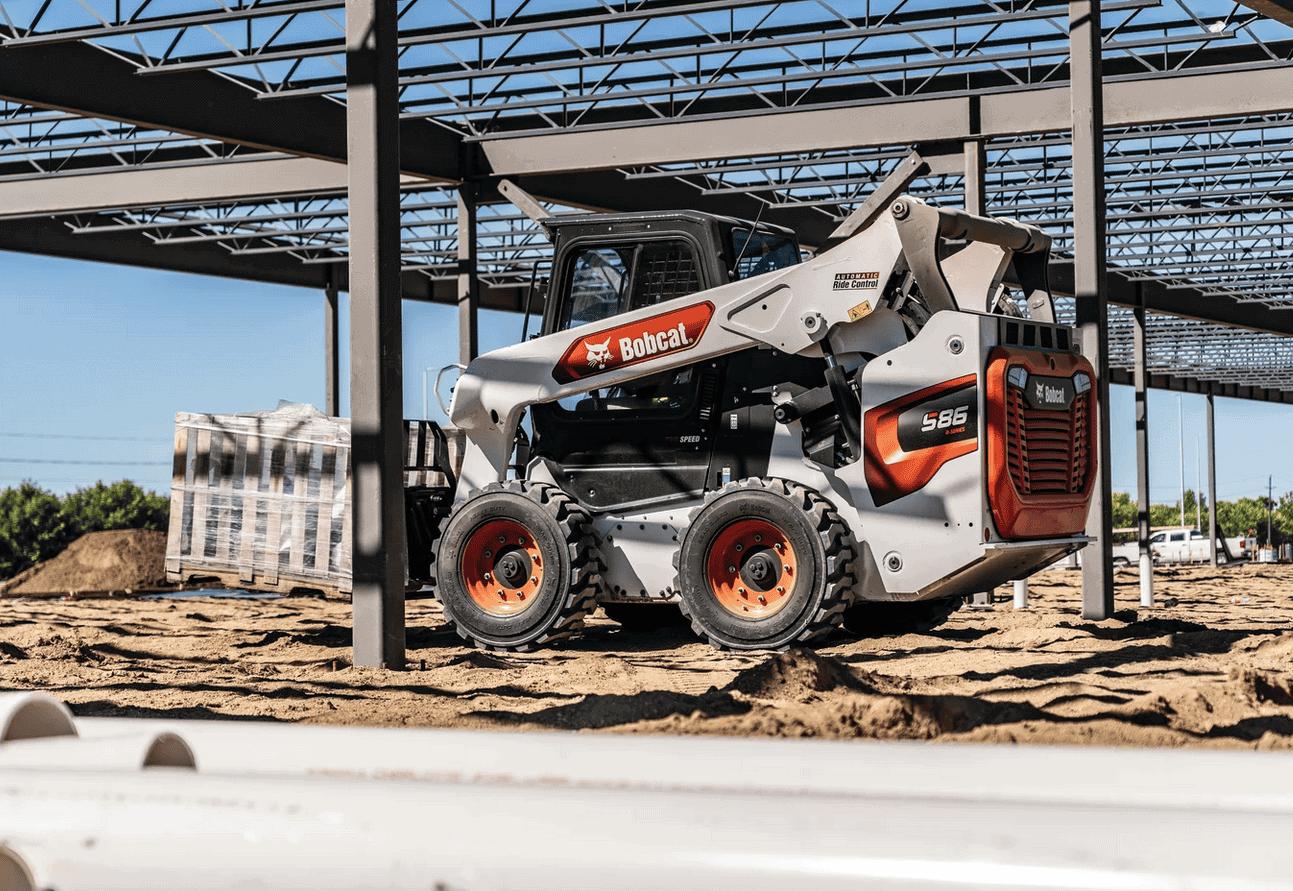

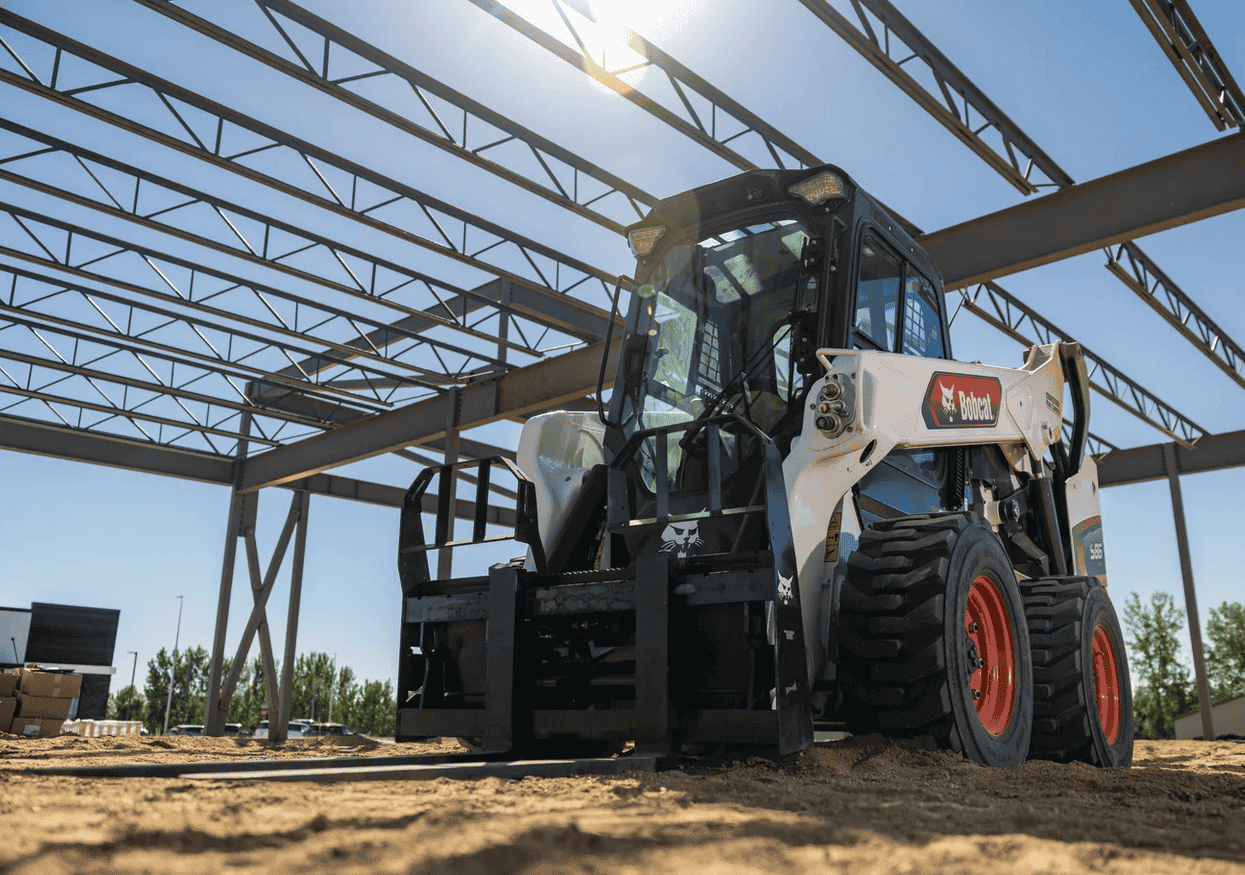

Bobcat S86 Skid-Steer Loader
105 hp
Horsepower
3,400 lb
Operating Capacity
9728 lb
Operating Weight
Bobcat S86 Skid-Steer Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Horsepower 105 hp
Auxiliary Std Flow 23.6 gal/min
Auxiliary High Flow 36.6 gal/min
Joystick Control Standard
Fuel Tank 31.6 gal
Performance
Tipping Load 6800 lb
Travel Speed 6.7 mph
Travel Speed (2-speed option) 12 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 105 hp
Turbocharged Engine yes
Horsepower Management Included with SJC Option
Dimensions
Length 153.5 in
Length without Attachment 120.4 in
Length with Standard Bucket 153.5 in
Width 72 in
Width (with bucket) 74 in
Height with Operator Cab 83.1 in
Height to Bucket Hinge Pin 132 in
Reach @ Maximum Height 38 in
Turning Radius 90.5 in
Wheelbase 51.3 in
