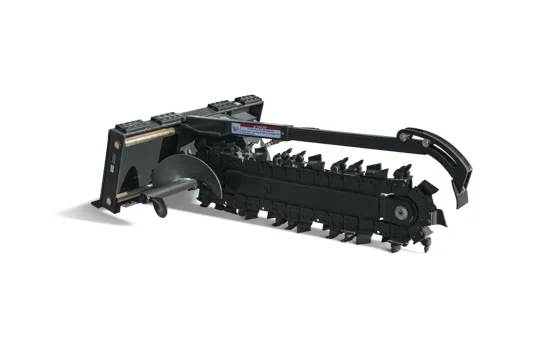

Bobcat Trencher Attachment

Get Quote
Browse Specs and more for the Bobcat Trencher Attachment - Bobcat of Indy

Bobcat Trencher Attachment

  • Cut into the ground and create a trench through all soil conditions
  • Designed with the power and strength to dig in even the toughest, rocky soil types
  • Use the side-shift feature to dig a trench close to buildings and other objects
  • Easy to use and built for improved trench digging and greater reliability
  • Ideal attachment for maintenance crews, municipalities, landscaping contractors and rental facilities
Get Quote

How The Bobcat Trencher Attachment Works

Cut into the ground and create a trench through all soil conditions. The trencher is designed with the power and strength to dig in even the toughest, rocky soil types. Use the side-shift feature – manual or hydraulic, depending on the model – to dig a trench close to buildings, fences, and other objects. Equip the trencher with different teeth and chain options to maximize trenching capabilities in different soil conditions.

The easy-to-use trencher attachment is built for improved trench digging and greater reliability on the jobsite. The trencher is the ideal attachment for maintenance crews, municipalities, landscaping contractors, and rental facilities.

Bobcat Trencher Attachment Specs

Length 60.7 in – 105.3 in
Auger Diameter 12 in - 13 in
Frame Width (std. equipment) 30.6 in – 65 in
Maximum Operating Pressure 3000 psi - 3300 psi
Side Shift Travel 16.1 in – 26 in
Standard Boom Length 39.4 in – 79 in
Dig Depth 24 in – 62 in
Widths Available Min 4 in - 6 in
Widths Available Max 8 in - 12 in
Operating Weight 570 lbs – 1520 lbs
Width 36 in 36 in 56 in 56 in 56 in 63 in 56.2 in 56.3 in 30.6 in
Chain Options MULTIPLE
Side Shift Type MANUAL
Auger Clearance 13.8-15.8 in or 24.0-27.0 in

Bobcat Trencher Attachment Features

Auger

Designed with a large diameter, the auger moves material from the side of the trench, limiting the amount of spoil falling back into the trench.

Grease Cylinder Tensioning

Quickly and easily adjust your chain to the proper tension.

Crumber

Standard on each trencher model, the crumber helps remove soil from the trench and provide a clean, smooth trench bottom.

Reverse Rotation

All trencher models are capable of momentarily reversing the chain direction to minimize stalling.

Narrow Frame Width

The LT112 – LT414 models are narrow enough to fit into a pickup box for easy transport.

Powerful Operation

From black dirt to gravel, the powerful operation of the trencher digs through tough, rocky soil types to build a trench.

Side Shift

The side shift provides attachment flexibility when working next to building or objects, allowing the trencher to achieve optimal productivity in all ground conditions and locations. Manual and hydraulic side-shift available, depending on the model.

Versatility

Equip the trencher attachment with several different teeth and chain configurations to match soil conditions for maximum digging power.
