Key Specifications
Horsepower 33 hp
Bucket Digging Force 7,284 lbf
Maximum Reach at Ground Level 17 ft
Width 69.7 in
Tail Swing Type Zero
Fuel Tank 13.7 gal
Auxiliary Std Flow 16.9 gal/min
Auxiliary Pressure 2,987 psi
Performance
Weight Class 3.6 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 4,690 lbf
Bucket Digging Force 7,284 lbf
Rated Lift Capacity 3318 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 10.1 ft
Max Dump Height 11.4 ft
Maximum Reach at Ground Level 17 ft
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,400 rpm
Horsepower 33 hp
Turbocharged Engine no
Optional Turbocharged Engine N/A
Dimensions
Length 190 in
Overall Length in Travel Position 190 in
Width 69.7 in
Height 96.2 in
Height with Operator Cab 96.2 in

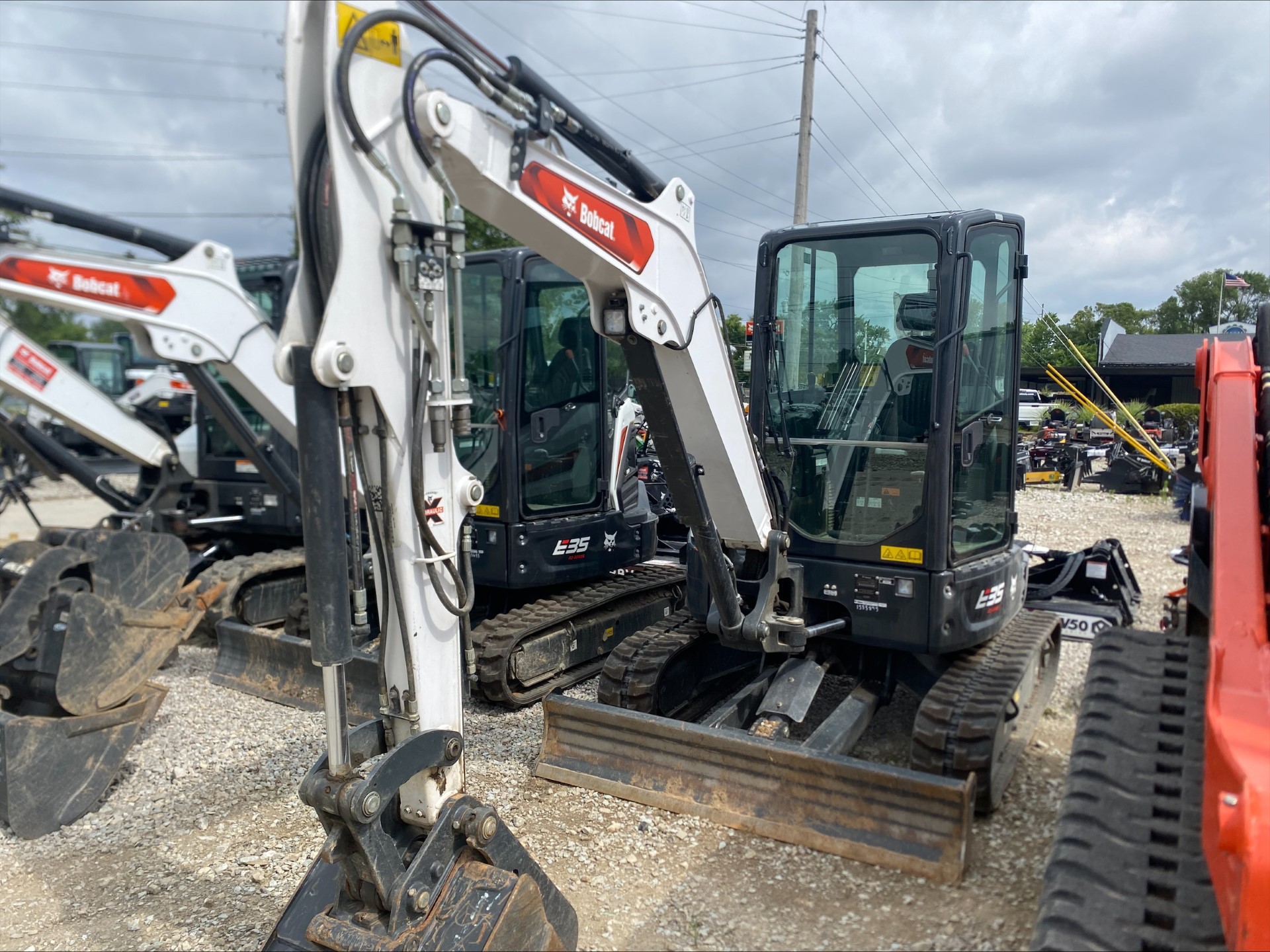

E35 (33 hp) Compact Excavator Features
Low-Effort Joysticks
Low-effort joysticks in R2-Series excavators respond easily to operator input, helping operators work longer with less fatigue.
Dual Flange Roller System
Dual flange track rollers extend the undercarriage structure closer to the track’s edge so you can dig with greater confidence over the side of the machine.
Multiple Arm Configurations
Multiple arm configurations are available on select models, including standard, long and extendable. Depending on the reach, depth, power, and lifting performance you need, there’s an arm to meet your job requirements.
