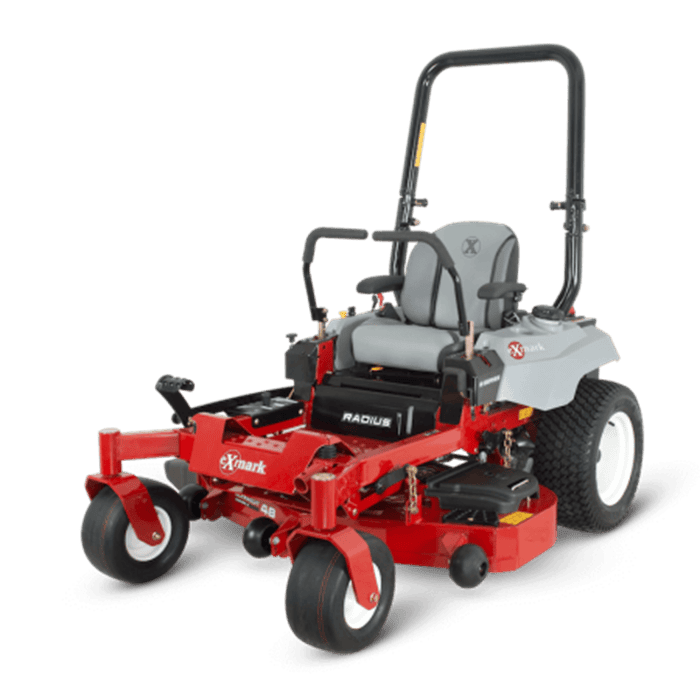

Radius E-Series

Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and home owners alike. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on.

Get Quote Specs Financing Calculator

Call Your Local Bobcat of Indy Location For Unit Availability.

48" - 60"

Mower Deck Width

3,600 rpm

Engine Speed

2

Blades

Radius E-Series Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Blade Spindles No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
Drive Tires 22 x 9.50-12 Super Turf (142-4261)
Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Bushings
Parking Brake Lever-actuated pawl brake.
Seat High back seat with foam padded seat cushion, armrests and integral safety switch
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter, cup holder, tow hitch and jack receiver
UPC 193308212371

Performance

Air Filter Standard Engine Manufacturer's air filter
Fuel System Carbureted
Fuel Type Gas Carbureted
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
Drive Wheel Release Allows unit movement without engine running.
Casters .375" thick caster yoke arms
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blades 2 Blades at 24.5" Length
Engine Brand Exmark
Engine Model LC2P77F
Engine Displacement 708
Engine Series V-Twin
Engine Speed 3,600 rpm
Engine Spec K5045

Dimensions

Width / Cutting Deck 48"
Width 61 in (155 cm)
Length 85 in (216 cm)
Height 70 in (178 cm)
Curb Weight 850
