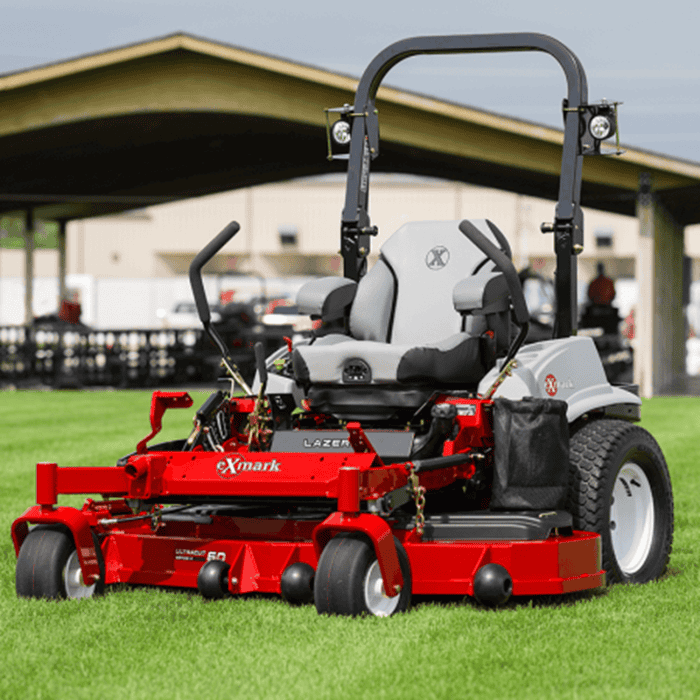

Lazer Z E-Series
The perfect choice for professional landscaper who want the innovative and commercial-grade quality of a Lazer Z zero-turn riding mower, but in a value package. The Lazer Z E-Series zero-turn mower features the same welded, heavy-duty, 1.5”x 3” tubular steel unibody frame found throughout our Lazer Z models. You can also choose from two rugged Kawasaki® V-Twin engines, a Kohler® Command™ Pro, or a Vanguard V-Twin engine matched to a full-floating, UltraCut™ Series 4 cutting deck, in 48, 52, 60, or 72-inch deck widths. Lazer Z E-Series zero-turn mowers come equipped with a full-suspension seat that enhances operator comfort, leading to less fatigue and increased efficiency.
48" - 72"
Mower Deck Width
3,750 RPM
Engine Speed
3
Blades
Lazer Z E-Series
Let's Get Started
"*" indicates required fields
Lazer Z E-Series Specs & Add-Ons
Key Specifications
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Drive Tires 23 x 9.50-12, 4 ply Super Turf®
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Front Caster Tires 13 x 5.0-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter and cup holder
UPC 193308119724
Performance
Air Filter Heavy-duty canister air filtration system
Fuel Type Gas Carbureted
Fuel Capacity 8-gallon (30.3-L) single fuel tank with single fill location.
Fuel Indicator Yes - electronic Sender
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.1 kmph) reverse.
Carb Compliant Yes
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop Electromagnetic 175 ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blades 3 Blades at 16.25" Length
Engine Brand Kawasaki®
Engine Model FX651V
Engine Displacement 726
Engine Series V-Twin
Engine Speed 3,750 RPM
Dimensions
Width / Cutting Deck 48"
Width 59.6 in. (151.4 cm)
Length 79.2 in. (201.2 cm)
Height 70.5 in. (179.1 cm)
Curb Weight 1118
