** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Horsepower 100 hp
Rated Operating Capacity (ISO) 3,950 lb
Operating Weight 10237 lb
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 36.6 gal/min
Joystick Control Optional
Fuel Tank 29.5 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 36.6 gal/min
Performance
Rated Operating Capacity (ISO) 3,950 lb
Tipping Load 8157 lb
Operating Weight 10237 lb
Travel Speed 7.1 mph
Travel Speed (2-speed option) 12.3 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine FuelDiesel
Horsepower 100 hp
Turbocharged Engine yes
Dimensions
Length 147.7 in
Length without Attachment 119.3 in
Length with Standard Bucket 147.7 in
Width 79 in
Width (with bucket) 80 in
Height 83.4 in
Height with Operator Cab 83.4 in
Height to Bucket Hinge Pin 144 in
Reach @ Maximum Height 30.7 in
Turning Radius 89 in
Wheelbase 52.9 in
Bobcat S850 Skid-Steer Loader Features
Powerful Hydraulics
Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.
Selectable Joystick Control
No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.
Increased Lifting Capabilities
R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.
Redesigned Bobcat Engine
R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

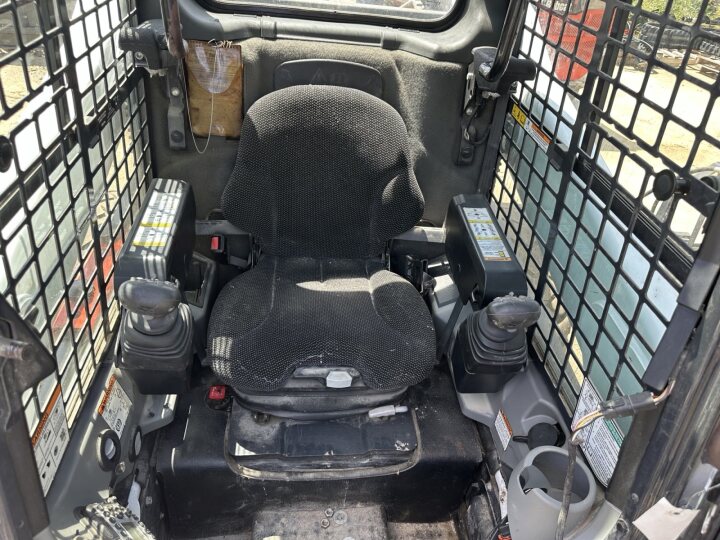

Premium Comfort
Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

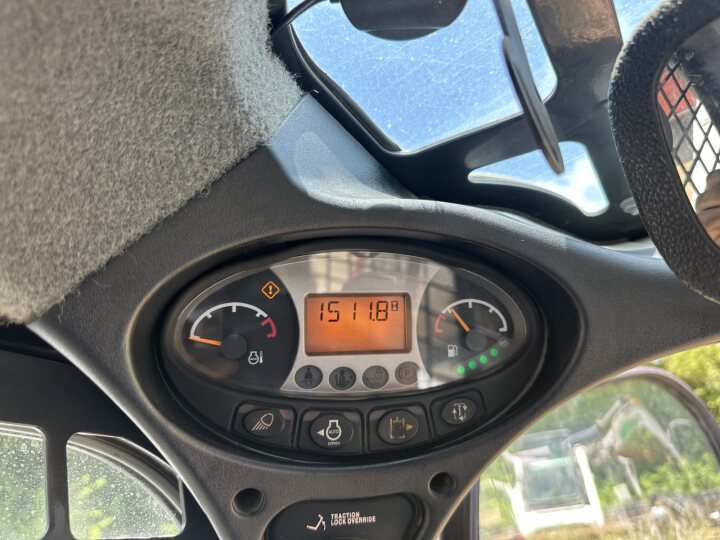

Touch Display
The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio offers Bluetooth™ connectivity. It includes a durable, waterproof touchscreen.
Improved Cooling System
The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high capacity radiator.
Bob-Tach Attachment System
Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.
Effective Weight Balance
Bobcat skid-steer loaders offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.
